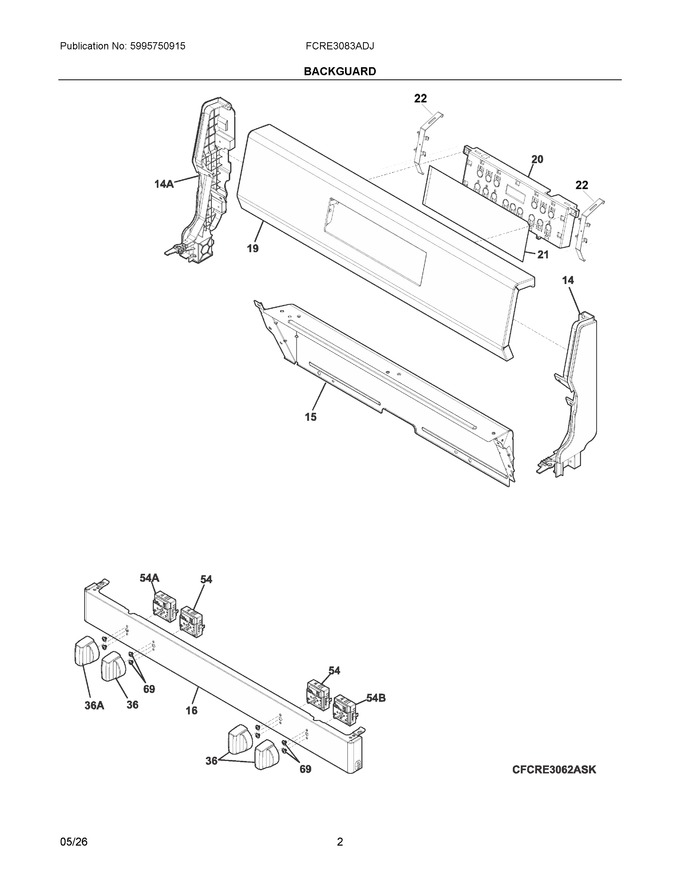

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	140283307068		Cap, Control Panel, Black, Rh			Immediately	$ 32.99
15	140270581014		Shield, Backguard, Inner		Appelez-nous	-
16	5304528742		Manifold Panel, Black Stainless		Appelez-nous	-
19	5304535792		Panel, Backguard, Black Stainless		Appelez-nous	-
20	140284300104		Controller, Eoc, Ui335e		Appelez-nous	-
21	140252713114		Overlay, Ui335e		Appelez-nous	-
22	140281846018		Bracket, User Interface		Appelez-nous	-
36	5304528582		Knob, Infinite Switch, Black Stainless, Single				$ 23.18
54	5304522966		Switch, Infinite, Single			Immediately	$ 78.11
56	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
69	5304526494		Screw, Truss T-20, 8-32 X 3/16, Switch Mtg.			Immediately	$ 2.32
14A	140283307050		Cap, Control Panel, Black, Lh			Immediately	$ 31.28
36A	5304514120		Knob, Infinite Switch, Black Stainless, Dual			Immediately	$ 23.07
54A	140173679014		Switch, Infinite, Dual			Immediately	$ 33.31
54B	140173680012		Switch, Infinite, Tboil			Immediately	$ 34.36
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	140259302051		Wiring Harness, Main		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
NI	5304534815		Harness, Wiring, Switches				$ 115.65
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
