SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

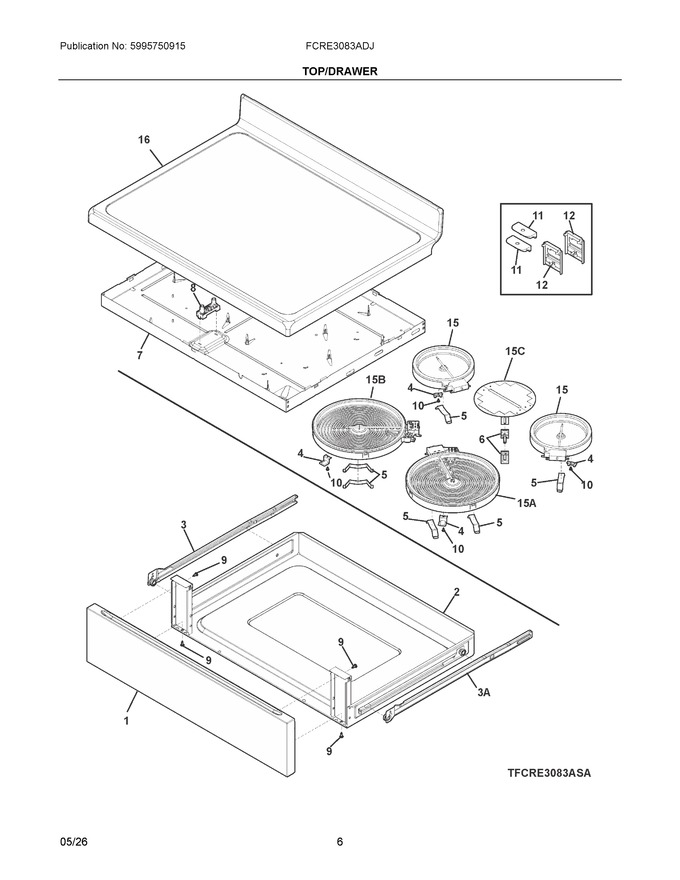

1	5304528113		Panel, Drawer, Black Stainless			Immediately	$ 101.61
2	5304526448		Drawer Assembly, Utility, W/inner Glides			Immediately	$ 154.85
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 21.34
4	387683300		Bracket, Surface Element			Immediately	$ 13.42
5	5304526627		Spring, Element Support			Immediately	$ 8.19
6	5304528474		Clip, Spring, Element				$ 7.59
7	5304533428		Burner Box, Smoothtop		Appelez-nous	-
8	5304538115		Indicator Light 250v Ul				$ 13.33
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
10	5304533456		Screw, T15 Self Tap, 3.5 X 8, Element Bracket				$ 3.50
11	5304537475		Clip-cooktop Alignment		Appelez-nous	-
12	5304534653		Clip, Support, Burner Box				$ 9.71
15	140283003014		Element, Radiant, 6", 1200w				$ 53.23
16	5304526441		Smoothtop, Assembly, Glass/steel, Black				$ 306.14
15A	8583165300028		Element, Surface, 9", 3200w, Turbo Boil				$ 89.90
15B	140249706031		Element Top, Radiant, 9/6", 3000w			Immediately	$ 86.00
15C	140273621015		Element, Radiant, 100w, Warmer			Immediately	$ 35.77
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 21.34
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	5304529019		Harness, Wiring, Surface Element			Immediately	$ 106.93

    View Diagram in Separate Window       Print Part List
