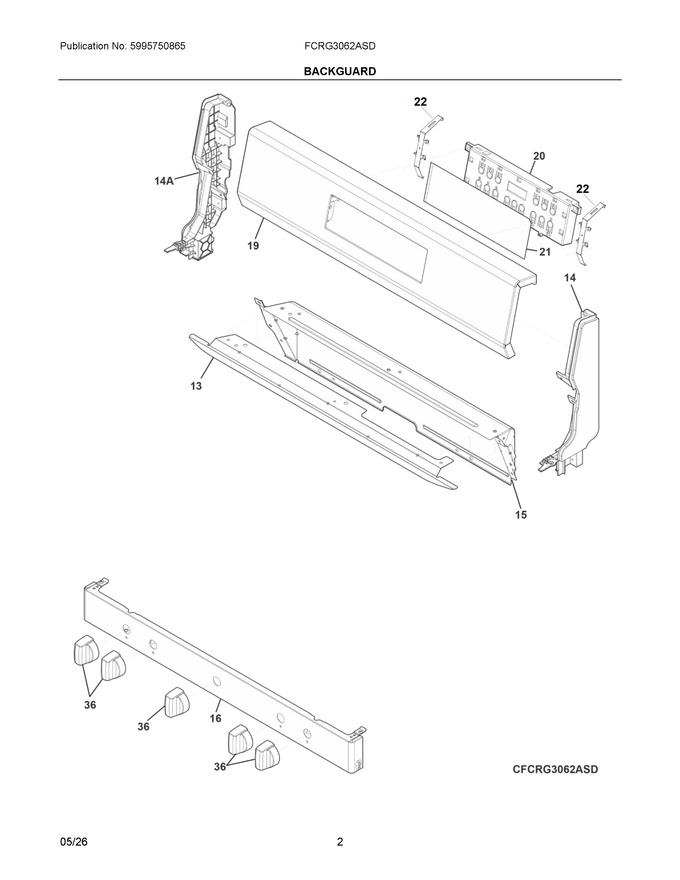

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	5304526526		Deflector, Flue, Black		Appelez-nous	-
14	5304533912		End Cap, Backguard, Black, Rh			Immediately	$ 52.71
15	5304526437		Shield, Backguard, Inner		Appelez-nous	-
16	5304528481		Panel, Manifold, Stainless		Appelez-nous	-
19	5304535793		Panel, Backguard, Stainless				$ 98.93
20	5304538422		Controller, Ui305, Electrical			Immediately	$ 135.33
21	5304534822		Overlay, Controller, Black, Ui305g			Immediately	$ 16.41
22	140281846018		Bracket, User Interface		Appelez-nous	-
36	5304509064		Knob, Stainless				$ 66.74
14A	5304533913		End Cap, Backguard, Black, Lh			Immediately	$ 49.21
NI	5304533830		Screw, T20, 4.2 X 13mm, Black, Zinc Plated		Appelez-nous	-
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.29
