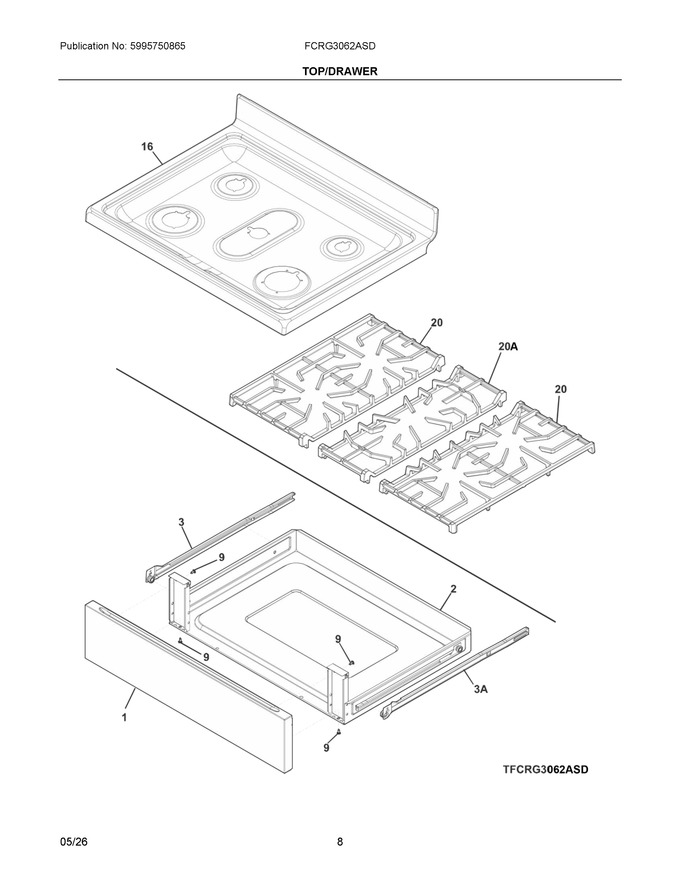

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526300		Panel, Drawer, Stainless, Outer				$ 103.34
2	5304526448		Drawer Assembly, Utility, W/inner Glides			Immediately	$ 154.85
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 21.34
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
11	5304537475		Clip-cooktop Alignment		Appelez-nous	-
16	316610078		Main Top, Black				$ 167.48
20	5304535359		Grate, Burner, Side			Immediately	$ 97.94
20A	5304534694		Grate, Burner, Center			Immediately	$ 130.11
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 21.34
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.29
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
