SELECT A DIAGRAM

Cabinet Parts


Door Parts


Liner Parts


Optional Parts


Shelf Parts


Unit Parts

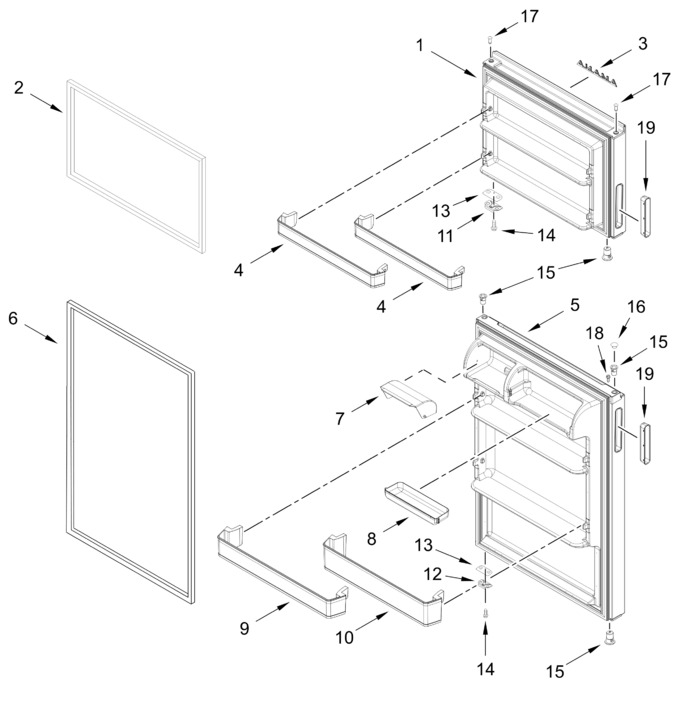

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11826361		Freezer Door Assembly (white, Includes Door Gasket And Handle Cup)   (Replaces: W11778289)		Appelez-nous	-
2	WP2319263W		Gasket, Fc Door (white)   (Replaces: 2264726)			Immediately	$ 135.93
3	W11428492		Badge (white)   (Replaces: W11046244)				$ 71.63
4	W11830190		Bin, Door (fc)   (Replaces: W11767123)		Appelez-nous	-
5	W11826644		Refrigerator Door Assembly (white, Includes Door Gasket And Handle Cup)   (Replaces: W11778294)				$ 167.97
6	WP2319265T		Gasket, Rc Door (white)   (Replaces: 2264728)			Immediately	$ 166.40
7	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 52.88
8	W11831826		Bin, Rc Door Tray   (Replaces: W11764418)		Appelez-nous	-
9	W11831819		Bin, Rc Door (top)   (Replaces: W11767327)		Appelez-nous	-
10	W11831824		Bin, Rc Door (interm)   (Replaces: W11757898)		Appelez-nous	-
11	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
12	W10492012		Bracket, Door Stop				$ 14.45
13	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 6.47
14	WP488921		Screw   (Replaces: 488921)			Immediately	$ 6.98
15	W11759045		Thimble, Top (white)   (Replaces: W10492018)			Immediately	$ 10.58
16	WP2212648		Plug, Hinge Hole (white)   (Replaces: 2212648)				$ 7.02
17	WP2182181		Thimble, Top (white)   (Replaces: 2200087)				$ 6.98
18	WP8281206		Screw   (Replaces: 8281206)				$ 7.15
19	W11818638		Handle, Cup (white)   (Replaces: W11759456)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
