SELECT A DIAGRAM

Cabinet Parts


Door Parts


Liner Parts


Optional Parts


Shelf Parts


Unit Parts

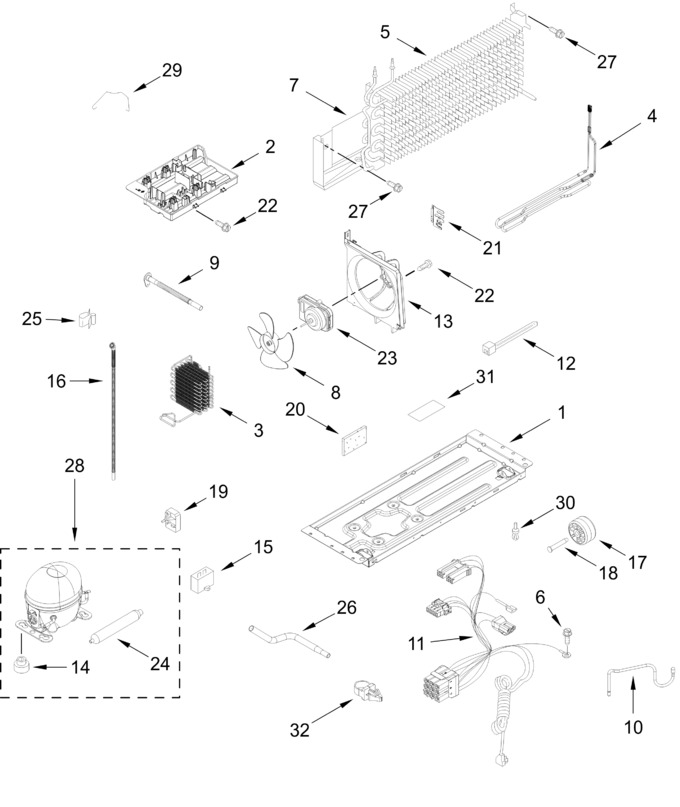

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11758153		Support Plate, Compressor   (Replaces: W11620973)		Appelez-nous	-
2	W10565417		Tray, Evaporator				$ 32.88
3	W11722672		Condenser   (Replaces: W11627779)				$ 240.21
4	W11579349		Heater, Defrost   (Replaces: W11339349)			Immediately	$ 100.52
5	W11579351		Evaporator Assembly   (Replaces: W11497963)			Immediately	$ 183.52
6	8533919		Screw		Appelez-nous	-
7	W10570572		Shield, Heat				$ 28.11
8	W11204896		Blade, Fan   (Replaces: W10675036)				$ 87.25
9	W10582029		Extension, Drain Tube		Appelez-nous	-
10	W11518247		Tube, Suction		Appelez-nous	-
11	W11677726		Harness, Unit   (Replaces: W11238411)				$ 63.90
12	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 7.11
13	WPW10570380		Scroll, Fan   (Replaces: W10570380)				$ 68.36
14	W11678963		Grommet, Compressor   (Replaces: W10806346)				$ 7.29
15	WPW10662129		Capacitor   (Replaces: W10590083)			Immediately	$ 52.97
16	W10286975		Tube, Drain				$ 26.10
17	WPW10475495		Roller, Cabinet   (Replaces: W10475495)			Immediately	$ 28.85
18	WP2264756		Axle, Roller   (Replaces: 2264756)				$ 6.47
19	W11547180		Start Device, Combination (start Relay And Overload)   (Replaces: W11359381)			Immediately	$ 34.05
20	W11553819		Sound Insulation   (Replaces: 2215468)			Immediately	$ 12.66
21	W11340313		Bracket, Evaporator				$ 64.59
22	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 9.95
23	W11578915		Motor, Condenser Fan   (Replaces: W11546724)			Immediately	$ 64.28
24	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 35.21
25	W11501419		Clip, Wiring   (Replaces: 1114718)			Immediately	$ 10.37
26	W11461499		Tube, Process				$ 55.72
27	WP489442		Screw   (Replaces: 489442)			Immediately	$ 9.85
28	W11580057		Compressor   (Replaces: W11706878)			Immediately	$ 342.99
29	W11577799		Strap, Bale   (Replaces: W11495051)		Appelez-nous	-
30	939962		Rivet, Plastic				$ 10.65
31	2266360		Shield, Electrical		Appelez-nous	-
32	2219077		Clip, Harness				$ 55.06
	W11504450		4/1.8 Nr Ms 00			Immediately	$ 39.87
	ARI169E995E2DAC0D79856EDDCD3C362715		(suction Tube To Compressor)		Appelez-nous	-
	ARI4BCECE878077ED002DD1895197EA4975		47 Grams (r600a)		Appelez-nous	-
	W11504415		8.5/8 Nr Ms 00			Immediately	$ 22.19
	W11504445		5/4 Nr Ms 00			Immediately	$ 24.79
	W11504430		7/6 Nr Ms 00			Immediately	$ 23.26
	W11504447		5/1.8 Nr Ms 00			Immediately	$ 37.63
	W11506619		8 Nk Ms 00			Immediately	$ 22.19
	ARI3031A698A6B8030D731C976AE04824C1		(high Pressure Side To Compressor)		Appelez-nous	-
	ARI9B437A9AB478C7E2DEB1C4CC29D600EE		(capillary Tube To Evaporator)		Appelez-nous	-
	ARIF479D1A0D17290EA712C859BF2E1C691		(high Side To Condenser)		Appelez-nous	-
	ARI8F052732CB60E39F6CA094A8168A5109		(process Tube To Compressor)		Appelez-nous	-
	ARI01A2781A3F964B0DAEAA0FEA5F13BC43		(suction Line To Evaporator)		Appelez-nous	-
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
	ARI500F2B538D318C1E3390E0716ECE69B7		(also Order The Following Lokring™ Parts)		Appelez-nous	-
	ARIDC3909E200058FAFA59ECDE3D8CD23DE		(suction Line To Condenser)		Appelez-nous	-
	W11504432		6/5 Nr Ms 00			Immediately	$ 22.19
	ARI5DD2AEE280966FBC792DC043E4E4B750		(capillary Tube To Drier)		Appelez-nous	-
	W11506620		8 Nk Al 00			Immediately	$ 27.51
	ARI365422773BD6741F2B56A197441A318E		(heat Loop To Drier)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
