View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Bulkhead Parts
Burner Assembly
Cabinet Parts
Door Parts
Optional Parts (not Included)
Top And Console Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

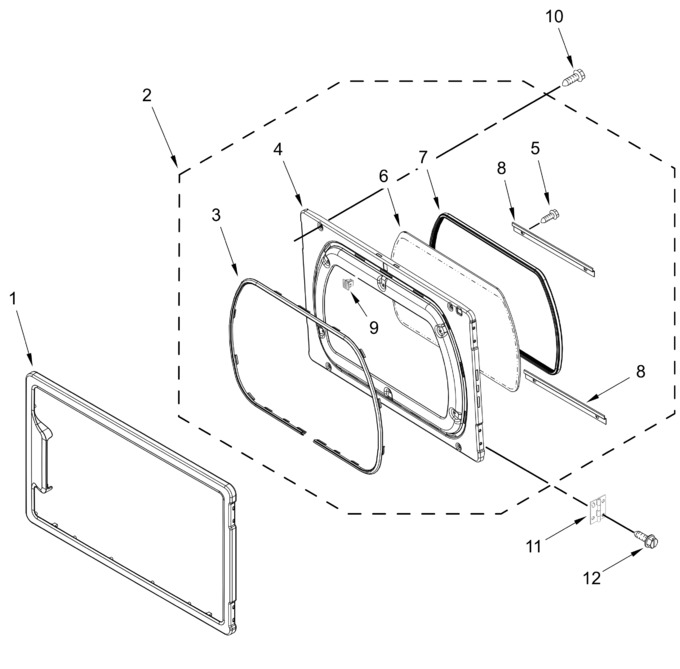

| 1 | WPW10284127 | Assembly, Door Outer (white) (Replaces: W10284127) |
|
$ 190.58 | |||||
| 2 | W11652037 | Assembly, Inner Door (white) (Replaces: W10513690) |
|
$ 179.06 | |||||
| 3 | WPW10354795 | Seal, Door (Replaces: W10354795) |
|
$ 111.53 | |||||
| 4 | W10822056 | Inner Door (white) (Replaces: W10470571) |
|
$ 187.83 | |||||
| 5 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 6.91 | |||||
| 6 | WPW10284121 | Glass, Door (Replaces: W10284121) |
|
$ 225.95 | |||||
| 7 | W11676508 | Seal, Window (Replaces: W10284122) |
|
$ 24.32 | |||||
| 8 | W10822054 | Retainer, Window (Replaces: 8519354) |
|
Immediately | $ 15.44 | ||||
| 9 | 279570 | Assembly, Door Catch (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 10 | WPW10273971 | Screw (Replaces: W10192860) |
|
Immediately | $ 6.47 | ||||
| 11 | WPW10279703 | Hinge And Pin Assembly (silver) (Replaces: W10279703) |
|
$ 65.00 | |||||
| 12 | WP488627 | Screw (Replaces: 342055) |
|
$ 6.81 |
