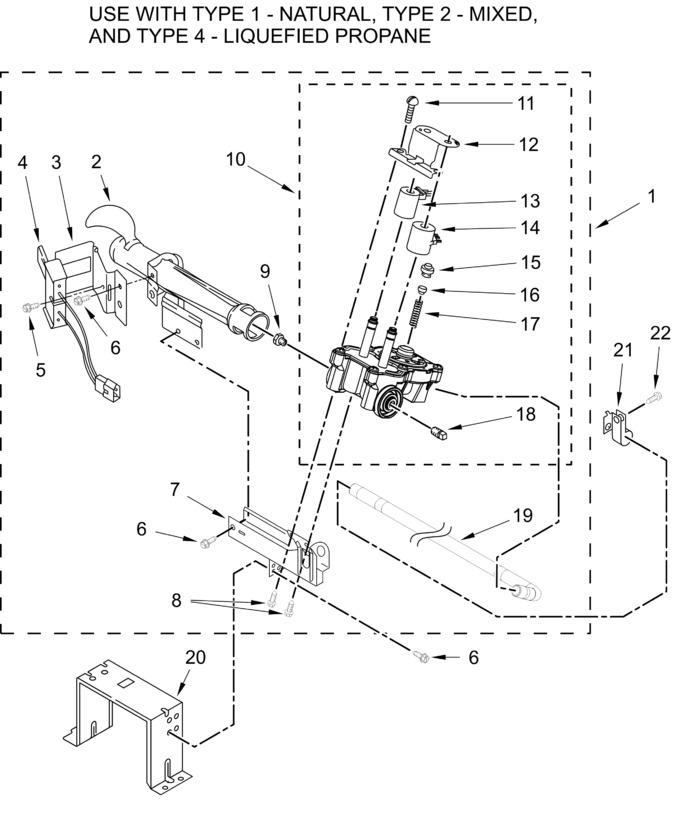

1	W10096909		Burner Assembly 50 Hz. (type 1 And 2)		Appelez-nous	-
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 161.89
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 23.33
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
5	WPW10366705		Screw   (Replaces: 3393909)				$ 6.75
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.07
7	3389871		Base, Burner				$ 71.36
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 6.47
9	234660		Orifice, Type 1 (natural)				$ 4.42
10	WP8281918		Valve Gas 50 Hz. (complete)   (Replaces: 8281918)				$ 207.73
11	694421		Screw, Coil		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	WP307930		Coil, 50 Hz.   (Replaces: 695297)				$ 95.14
14	WPY307931		Coil, 50 Hz. (split)   (Replaces: 695298)				$ 104.11
15	WP694424		Leak, Limiter   (Replaces: 694424)				$ 31.11
16	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.26
17	WP694422		Spring, Regulator   (Replaces: 694422)				$ 21.84
18	W10295523		Pipe Plug		Appelez-nous	-
19	W10097610		Pipe, Gas Supply		Appelez-nous	-
20	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
21	3978776		Bracket, Gas Pipe		Appelez-nous	-
22	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
	ARI0856373A82A82542DE98D491FD892F46		Ba-158		Appelez-nous	-
	W10181947		Lp Conversion Kit (fr/be Nat Gas)   (Replaces: W10832960)		Appelez-nous	-
	W10571757		Lp Conversion Kit (aus Type 4)   (Replaces: W10832961)				$ 32.40
	W10571757		Lp Conversion Kit (eu Type 4)   (Replaces: W10233219)				$ 32.40
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
