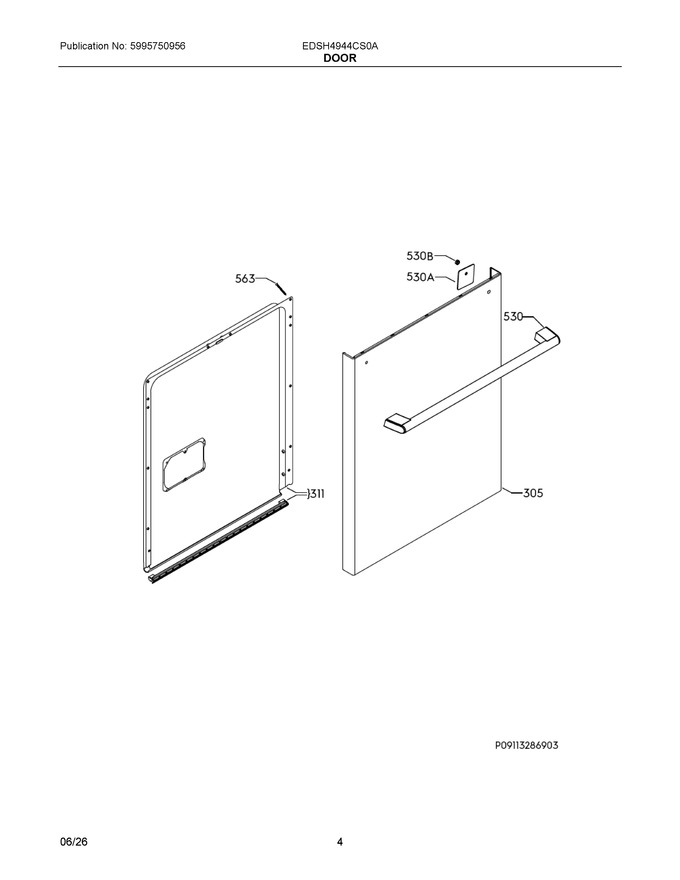

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
305	8581175124602		Door, Outer, Stainless   (Replaces: 117496070)				$ 146.48
311	A00010702		Liner, Door				$ 397.30
530	140169782020		Handle, Door, Stainless		Appelez-nous	-
563	405538278		Screw Kit, Door, 3.5x13/19/40, (6/3/5 Pcs), Complete				$ 16.34
530A	405530675		Plate, Door Handle, (2)		Appelez-nous	-
530B	405530684		Nut, Door Handle, (2)				$ 52.88
NI	807952759		Mounting Kit			Immediately	$ 45.26
NI	154603401		Plate, Handle Support, (2)			Immediately	$ 16.30
