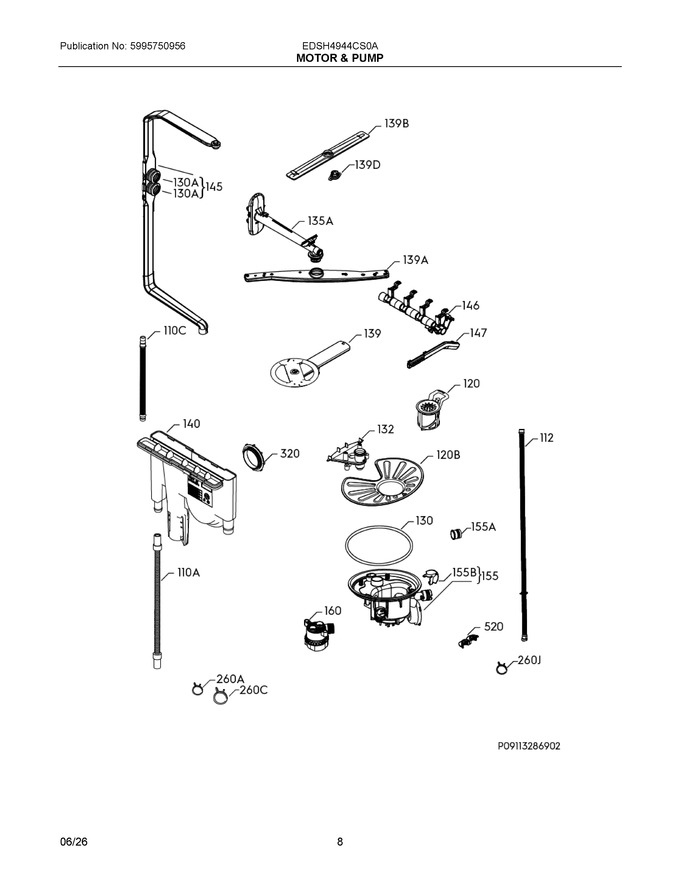

05 - Motor & Pump


06 - Frame


07 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
112	807032601		Hose, Drain			Immediately	$ 57.01
120	A00201409		Drain Filter, Assembly, W/glass Trap			Immediately	$ 66.41
130	111918600		O-ring, Sump				$ 86.75
132	A11243702		Support, Spray Arm, Dark Grey, Lower				$ 21.78
139	111920873		Spray Arm, Lower, Satelite				$ 62.95
140	140010874133		Container Cup, Small		Appelez-nous	-
145	A00023201		Manifold, Delivery Tube, Inner				$ 243.66
146	807008605		Wash Arm, Bottle Cleaner, W/premix		Appelez-nous	-
147	A23731606		Tube, Premix, Detergent		Appelez-nous	-
155	A00049448		Sump Assembly, Water		Appelez-nous	-
160	A00001202		Regulator, Flow Control				$ 246.37
320	152627221		Grill, Vapor Outlet, Dark Grey				$ 57.46
520	807201901		Flange, Discharge Hose				$ 78.67
110A	807526501		Tubing, Container Cup, To Fill Valve				$ 69.55
110C	A01256402		Hose, Sump, L=361 Mm, Water Tank			Immediately	$ 48.15
120B	808429704		Filter, Flat, Indicator				$ 93.84
130A	A00045701		Seal, Channel, Drainage			Immediately	$ 117.42
135A	A00060302		Duct, Grey				$ 189.24
139A	A05814602		Spray Arm, Middle, Dark Grey			Immediately	$ 45.69
139B	807382106		Spray Arm, Grey, Upper				$ 200.57
139D	807035801		Bearing, Spray Arm, Upper			Immediately	$ 23.39
155A	A00053601		Flapper, Valve, D23, 2mm, Water Sump				$ 138.56
155B	A07309701		Screen, Sump				$ 5.83
260A	807868902		Clamp, Pump, Flow Regulator			Immediately	$ 49.71
260C	807868903		Clamp, Pump, Sump			Immediately	$ 49.62
260J	807868901		Clamp, Drain Hose			Immediately	$ 53.87
NI	405530686		Screw, Sump, 4 X 15, (4), & Spray Arm			Immediately	$ 136.79
