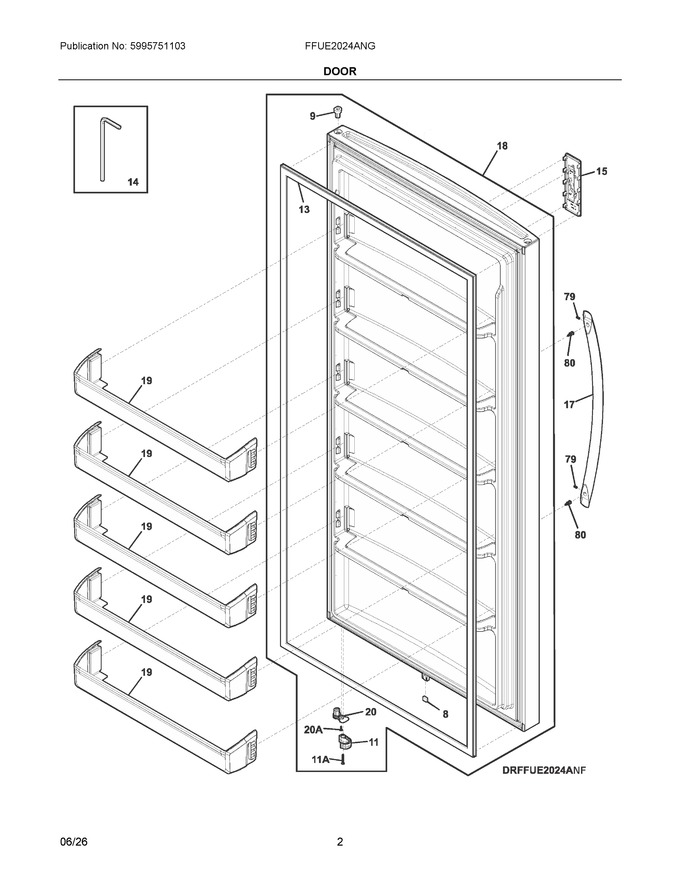

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 140026775019 | Sensor, Magnet, Switch, Reed |
|
$ 4.11 | |||||
| 9 | 5304522194 | Bearing, Hinge, Gray |
|
Immediately | $ 2.28 | ||||
| 11 | 5304522238 | Hook, Door Closer, Gray |
|
Immediately | $ 8.34 | ||||
| 13 | 140190906861 | Gasket, Door, Gray (Replaces: 5304524887) |
|
Immediately | $ 112.54 | ||||
| 14 | 241601002 | Wrench, Allen |
|
- | |||||
| 15 | 140122120037 | User Interface, Assembly, Iolite |
|
Immediately | $ 137.96 | ||||
| 17 | 5304511770 | Handle-door, Stainless (Replaces: 5304510343) |
|
Immediately | $ 229.03 | ||||
| 18 | 5304531522 | Door Assembly, Freezer, Carbon, W/gasket-hrdwre |
|
$ 385.41 | |||||
| 19 | 5304524110 | Shelf, Door, Clear |
|
Immediately | $ 39.04 | ||||
| 20 | 5304530176 | Bearing, Door, Gray, Lower |
|
- | |||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 11A | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 | ||||
| 20A | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NI | 5304524123 | Harness, Jumper, Cabinet, To Door |
|
$ 24.08 | |||||
| NIA | 140276924044 | Button, Plug, Gray |
|
- |
