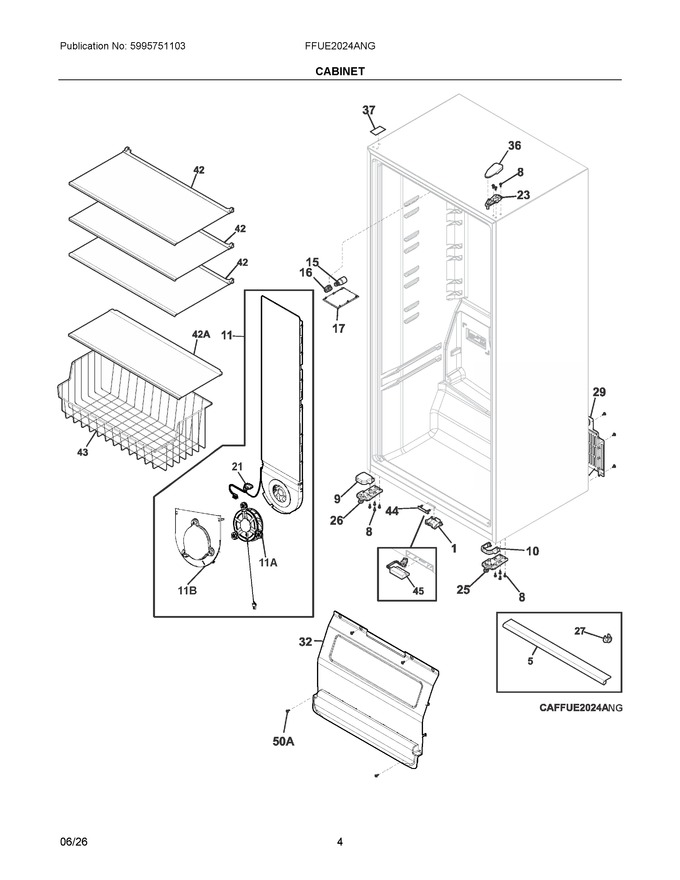

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304523792 | Cover, Housing, Reed Switch |
|
Immediately | $ 7.96 | ||||
| 5 | 5304524149 | Channel, Wiring Harness |
|
$ 39.04 | |||||
| 8 | 5304522279 | Screw, Hex Wsh Hd Quad, M5 X 16 |
|
Immediately | $ 3.08 | ||||
| 9 | 5304522221 | Cover, Hinge, Gray, Lower, Non-hinged |
|
Immediately | $ 5.07 | ||||
| 10 | 5304522246 | Cover, Hinge Side, Gray, Lower |
|
Immediately | $ 4.47 | ||||
| 11 | 140123717062 | Air Tower, Assembly, Complete |
|
$ 137.43 | |||||
| 15 | 5304522314 | Bulb, Light, E17/12 Led |
|
Immediately | $ 40.19 | ||||
| 16 | 5304530650 | Socket, Light, Led |
|
Immediately | $ 10.01 | ||||
| 17 | 5304536791 | Lens, Light |
|
- | |||||
| 21 | 5304523788 | Harness Assembly, Temp/defrost, W/thermostats |
|
Immediately | $ 38.56 | ||||
| 23 | 5304537471 | Hinge, Upper |
|
$ 5.27 | |||||
| 25 | 5304529045 | Hinge-bottom, Assembly, Rh, W/foot-closer |
|
$ 45.55 | |||||
| 26 | 5304523747 | Hinge-bottom, Assembly, Lh Non Hinged, W/foot |
|
$ 41.21 | |||||
| 27 | 5304524141 | Spacer, Roller, Lower Hinge |
|
$ 9.41 | |||||
| 29 | 5304525858 | Cover, Access, Machine Compt. |
|
$ 55.67 | |||||
| 32 | 5304534437 | Cover Assembly, Evaporator, W/insulation |
|
Immediately | $ 102.83 | ||||
| 36 | 5304530085 | Cover, Hinge, Gray, Upper |
|
$ 6.95 | |||||
| 37 | 5304524036 | Label, Blank, Gray, Qr Code |
|
Immediately | $ 3.55 | ||||
| 42 | 5304536377 | Shelf Assembly, Glass, 26.7", W/trim (Replaces: 5304524074) |
|
Immediately | $ 51.45 | ||||
| 43 | 5304537472 | Basket, Gray, Lower |
|
Immediately | $ 36.47 | ||||
| 44 | 5304524130 | Cover, Reed Switch, Front |
|
$ 10.63 | |||||
| 45 | 5304527992 | Reed Switch Harness, Assembly |
|
Immediately | $ 81.69 | ||||
| 11A | 140213829033 | Fan Asseembly, Motor, Evaporator |
|
Immediately | $ 49.81 | ||||
| 11B | 5304523722 | Mount-fan, Evaporator |
|
Immediately | $ 18.79 | ||||
| 42A | 5304536378 | Shelf Assembly, Glass, Small, W/trim (Replaces: 5304524026) |
|
$ 38.90 | |||||
| 50A | 5304523738 | Screw, Hex Wash Hd, M4.2 X 16 |
|
$ 6.51 | |||||
| NI | 30534600 | Clip, Plastic, W/adhesive |
|
$ 3.79 | |||||
| NI | 5304534034 | Screw, Type Ab, #10-16 |
|
- | |||||
| NI | 5304524123 | Harness, Jumper, Cabinet, To Door |
|
$ 24.08 | |||||
| NI | 241500305 | Screw, Hex Head, #8-18x5/8 (Replaces: 241853202) |
|
$ 3.03 | |||||
| NIA | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.03 |
