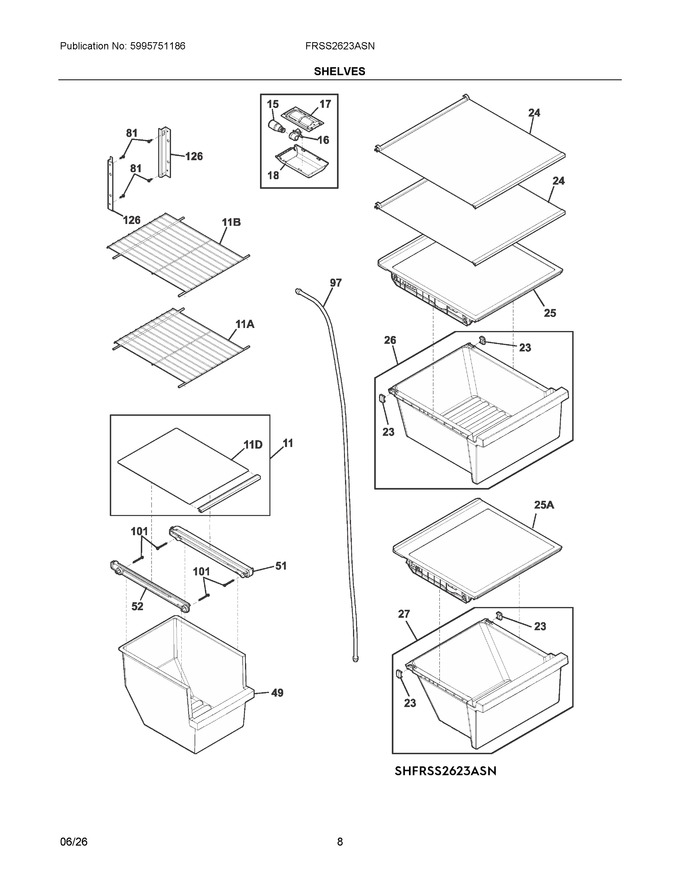

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304539493		Glass Shelf, Assembly, Freezer, Lower				$ 20.21
15	5304522314		Bulb, Light, E17/12 Led			Immediately	$ 40.19
16	5304522315		Socket, Led Light			Immediately	$ 10.62
17	5304526001		Housing, Light, Fresh Food				$ 12.13
18	5304526002		Lens, Light, Fresh Food				$ 22.75
23	5304525911		Clip, Slide, Crisper			Immediately	$ 10.62
24	5304539492		Glass Shelf, Assembly				$ 43.49
25	5304525934		Crisper Cover, Assembly, Glass, Upper, W/trim-gasket			Immediately	$ 161.28
26	5304535020		Crisper Pan, Upper, W/slide Clips		Appelez-nous	-
27	5304535021		Crisper Pan, Lower, W/slide Clips		Appelez-nous	-
49	5304525919		Basket, Freezer, Sliding				$ 72.15
51	240343002		Hanger-basket, Rh				$ 65.22
52	240343102		Hanger-basket, Lh				$ 69.77
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
97	242220119		Tube, Water, 97.5", Natural, Filter, Secondary Valve			Immediately	$ 30.47
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
126	241674401		Channel, Auger Mtg, Lh				$ 47.48
11A	241657512		Shelf, Fixed, Freezer   (Replaces: 241657502)				$ 16.87
11B	241657514		Shelf, Fixed, Upper, Freezer   (Replaces: 241657504)		Appelez-nous	-
11D	240350605		Shelf-freezer, Glass, Lower				$ 106.93
126A	241674402		Channel, Auger Mtg, Rh				$ 43.24
25A	5304535254		Crisper Cover, Assembly, Glass, Lower		Appelez-nous	-
NI	5304525945		Rail, Ice Container, Rh		Appelez-nous	-
NI	5304525946		Rail, Ice Container, Lh				$ 100.11
NIA	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
