SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Diagram

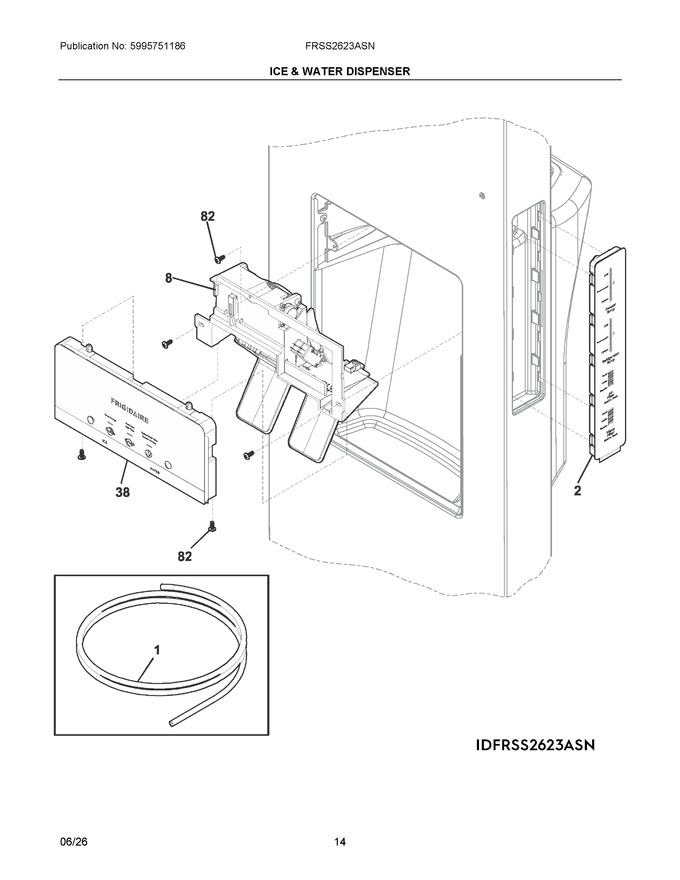

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976447		Tube, Water, 60", Natural, Door, To Dispenser				$ 16.99
2	5304533235		User Interface, Assembly, Gray, Side Control, W/pcb-overlay			Immediately	$ 140.86
8	5304538328		I&w Dispenser Module, Assembly, Gray				$ 126.55
38	140237597053		Display Board, User Interface Assembly,   (Replaces: 140150822140)		Appelez-nous	-
82	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
NI	241806601		Connector, Water Tube, 5/16 To 5/16, Straight   (Replaces: 242103001)			Immediately	$ 70.56
NI	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
NIA	218976439		Tube, Water, 32", Yellow, Valve, To Door				$ 19.13

    View Diagram in Separate Window       Print Part List
