SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram

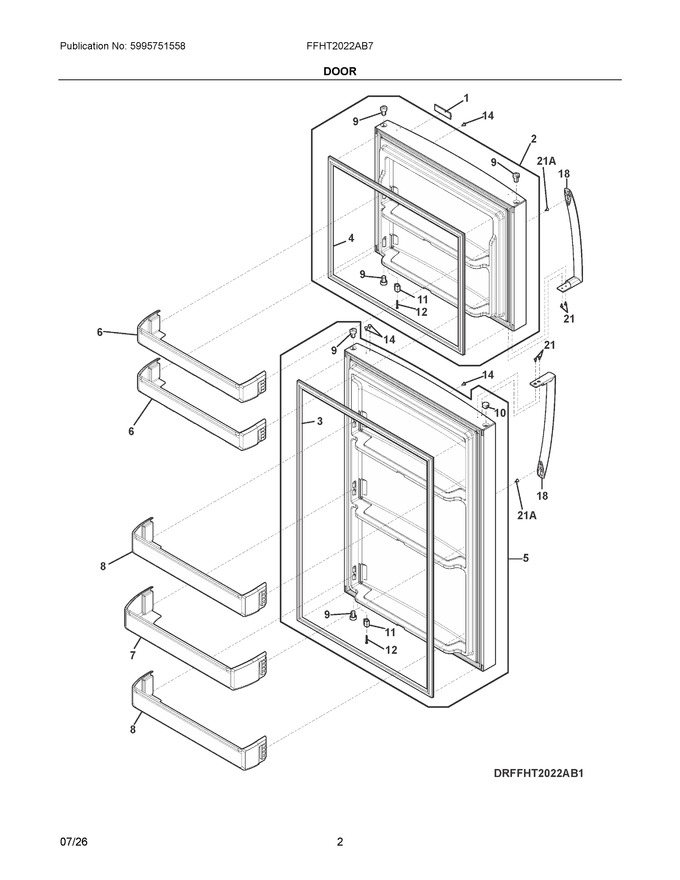

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304511145		Badge, Frigidaire, Black				$ 4.55
2	140210785220		Door Assembly, Foamed, 30w, Frz		Appelez-nous	-
3	5304528903		Gasket, Door, Gray, Fresh Food			Immediately	$ 205.12
4	5304528904		Gasket, Door, Gray, Freezer			Immediately	$ 180.01
5	140210779223		Door Assembly, Foamed, 30w, Ff		Appelez-nous	-
6	5304519702		Bin, Door, White, Freezer			Immediately	$ 50.63
7	5304522123		Bin, Door, 6", White, Refrigerator			Immediately	$ 70.75
8	5304519703		Bin, Door, 4", White, Refrigerator			Immediately	$ 22.42
9	5304522193		Bearing, Hinge, Black				$ 7.59
10	5304522186		Cover, Hinge Bearing, Black		Appelez-nous	-
11	5304536274		Stopper, Door, Black, Stopper				$ 3.77
12	241953905		Screw, 8-18 X 1.25			Immediately	$ 11.38
14	240494003		Button, Plug, Black				$ 18.20
18	5303918824		Door Handle, Assembly, Black			Immediately	$ 49.29
21	241690602		Screw, Quadrex, #10-16 Hilo			Immediately	$ 10.63
21A	240521303		Screw, #10-16 X 1/2			Immediately	$ 30.20

    View Diagram in Separate Window       Print Part List
