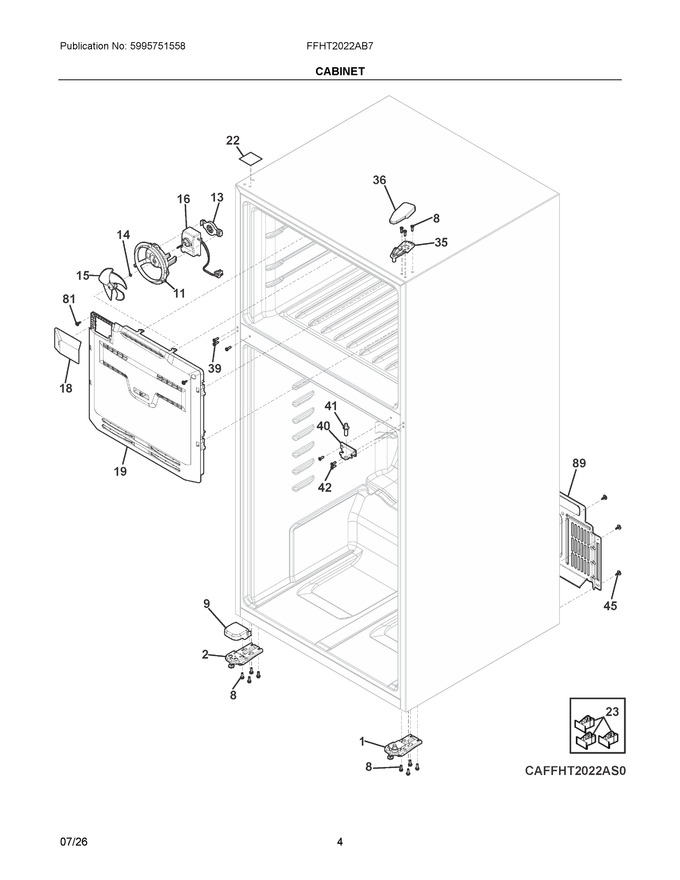

03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526773		Hinge Assembly, Bottom, Black, Rh, W/pin-closer				$ 43.38
2	5304519776		Hinge Assembly, Bottom, Lh			Immediately	$ 25.79
8	5304522279		Screw, Hex Wsh Hd Quad, M5 X 16			Immediately	$ 3.08
9	5304522220		Cover, Hinge, Black, Lower, Non Hinged			Immediately	$ 5.22
11	5304519752		Shroud, Evaporator Fan			Immediately	$ 21.23
13	242287501		Grommet, Evaporator Fan, Rear			Immediately	$ 17.72
14	215474201		Washer, "slinger", Nylon, Evap Fan Shaft			Immediately	$ 18.43
15	242219302		Fan Blade, Evaporator			Immediately	$ 17.44
16	242219206		Motor, Blower, High Efficiency   (Replaces: 5304539152)			Immediately	$ 161.62
18	5304519662		Cover, I/m Connector			Immediately	$ 5.96
19	5304519654		Cover Assembly, Evaporator, W/frz Slide			Immediately	$ 127.76
22	5304523314		Label, Blank, Black, Hole Cover				$ 3.56
23	5304523302		Clip, Wiring Harness, Plastic, W/adhesive		Appelez-nous	-
35	5304519646		Hinge, Door, Upper			Immediately	$ 8.34
36	5304530084		Cover, Hinge, Black, Upper				$ 6.95
39	5304522252		Screw, Pan Hd Qdrx Tri, M5 X 12, Black				$ 3.03
40	5304539155		Hinge, One-piece, Zinc, Center		Appelez-nous	-
41	5304519642		Pin, Center Hinge, Door			Immediately	$ 5.31
42	5304524221		Screw, Flat Head Qdrx, M5 X 16, Black		Appelez-nous	-
45	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03
81	5304519765		Screw, Hx Wash Hd, M4.2 X 12			Immediately	$ 3.03
89	5304522114		Access Cover, Rear				$ 34.25
NI	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
NIA	5304539157		Spacer, Center Hinge, Clear		Appelez-nous	-
