01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

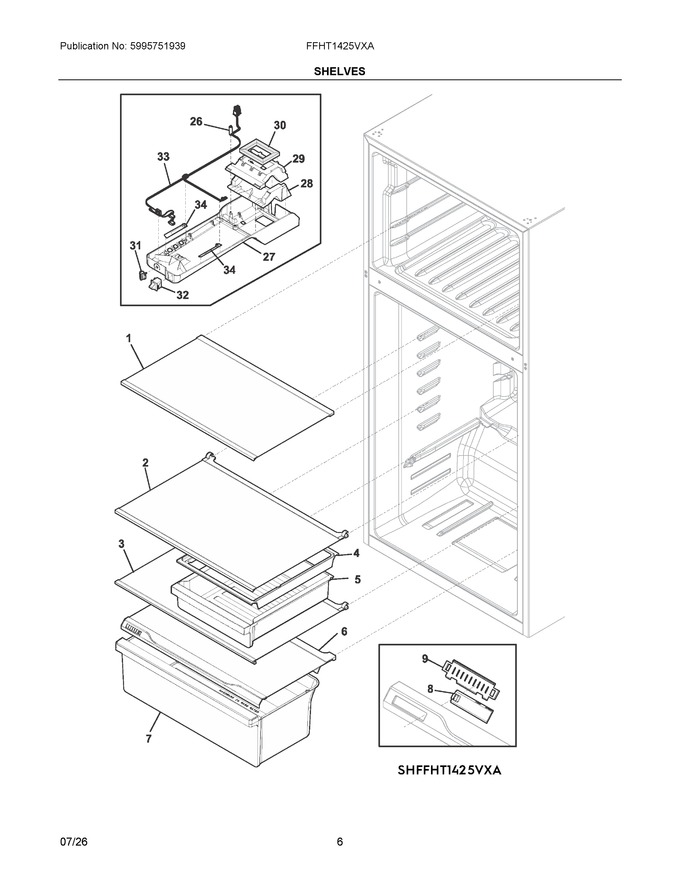

| 1 | 5304520481 | Shelf Assembly, Glass, Freezer |
|
$ 79.62 | |||||
| 2 | 5304520482 | Shelf Assembly, Glass, Fresh Food, Deli Drawer |
|
Immediately | $ 85.24 | ||||
| 3 | 5304520483 | Shelf Assembly, Glass, Fresh Food |
|
$ 87.97 | |||||
| 4 | 5304520484 | Support, Deli Drawer |
|
Immediately | $ 34.18 | ||||
| 5 | 5304520485 | Drawer Assembly, Deli |
|
Immediately | $ 60.44 | ||||
| 6 | 5304520486 | Shelf Assembly, Glass, Crisper Cover, W/humid Control |
|
Immediately | $ 77.66 | ||||
| 7 | 5304520487 | Drawer Assembly, Crisper |
|
$ 89.62 | |||||
| 8 | 5304520488 | Slide, Humid Control, Crisper |
|
$ 9.91 | |||||
| 9 | 5304520489 | Frame, Slide Control |
|
- | |||||
| 26 | 5304520944 | Sensor, Temperature |
|
Immediately | $ 20.74 | ||||
| 27 | 5304520490 | Control Box |
|
$ 46.27 | |||||
| 28 | 5304520491 | Duct, Air Flow, Eps, Bottom |
|
$ 15.23 | |||||
| 29 | 5304520492 | Duct, Air Flow, Eps, Top |
|
$ 15.17 | |||||
| 30 | 5304520493 | Seal, Air Duct, Top |
|
Immediately | $ 18.20 | ||||
| 31 | 5304520494 | Knob, Control |
|
- | |||||
| 32 | 140118119027 | Switch, Door/light, White (Replaces: 5304520495) |
|
Immediately | $ 4.35 | ||||
| 33 | 5304520496 | Wiring Harness, Control Box, W/potentiometer, & Ff Sensor |
|
Immediately | $ 76.90 | ||||
| 34 | 5304525264 | Light Board, 3 Led Cluster, 6500k (Replaces: 242196211) |
|
Immediately | $ 59.00 | ||||
| NI | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 |
