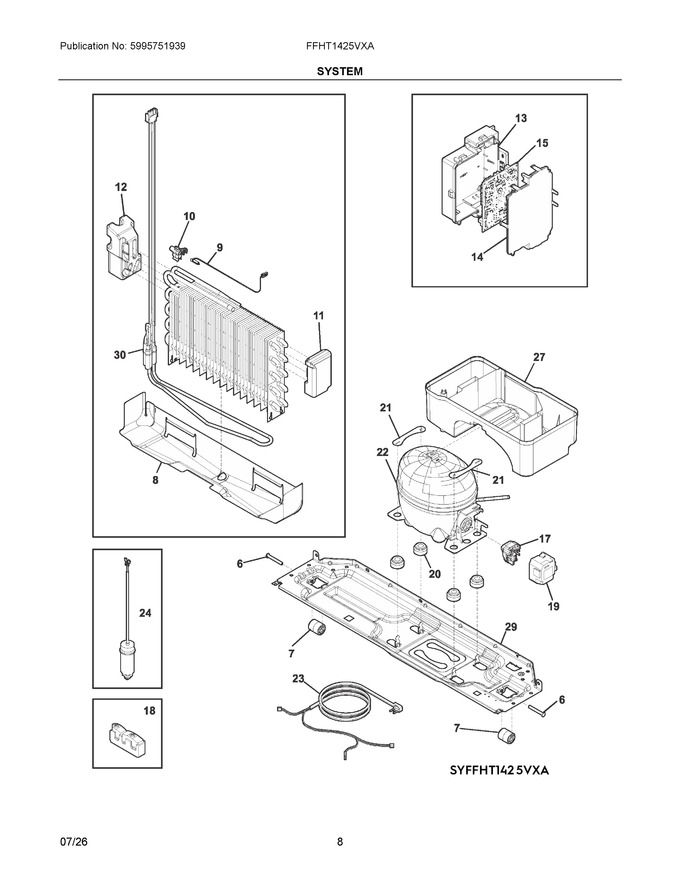

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	811998301		Shaft, Cabinet Roller		Appelez-nous	-
7	811998202		Roller, Cabinet, Base		Appelez-nous	-
8	5304520498		Tray, Drain, Evaporator				$ 53.09
9	5304520944		Sensor, Temperature			Immediately	$ 20.74
10	811980406		Clamp, Ntc, Evaporator   (Replaces: 811980402)				$ 4.19
11	5304520499		Support, Evaporator, Rh		Appelez-nous	-
12	5304520500		Support, Evaporator, Lh		Appelez-nous	-
13	5304520501		Housing, Control Board, Main		Appelez-nous	-
14	5304525319		Cover, Housing, Control Board   (Replaces: 5304520502)				$ 15.90
15	5304526091		Pc Board, Control, Main, Programmed   (Replaces: 5304520503)			Immediately	$ 255.56
17	140157483011		Electricals, Compressor, Th1111y   (Replaces: 5304520509)			Immediately	$ 64.46
18	242535801		Clamp Assembly, Cable		Appelez-nous	-
19	242563302		Cover, Electricals				$ 20.24
20	811978901		Grommet, Compressor		Appelez-nous	-
21	5304524607		Clamp, Compressor, 2 Hole   (Replaces: 811998601)				$ 2.89
23	5304520505		Power Cord, Electrical, Service				$ 122.40
24	5304527825		Capacitor, Run, Compressor   (Replaces: 5304520510)				$ 38.68
27	5304534928		Drain Pan, Compressor Mtg.   (Replaces: 5304520506)			Immediately	$ 14.85
29	8588078227135		Base Assembly, Compressor   (Replaces: 807822703)		Appelez-nous	-
30	140159197031		Heater, Defrost, Evaporator   (Replaces: 5304520507)		Appelez-nous	-
NI	811949401		Screw, Trilob, M5 X 16			Immediately	$ 5.31
NI	808337903		Screw, Pf Ab Pfz Ph, 3.5x1.27x32				$ 5.31
NIA	5304519110		Screw, Trilob, M3 X 6				$ 3.03
