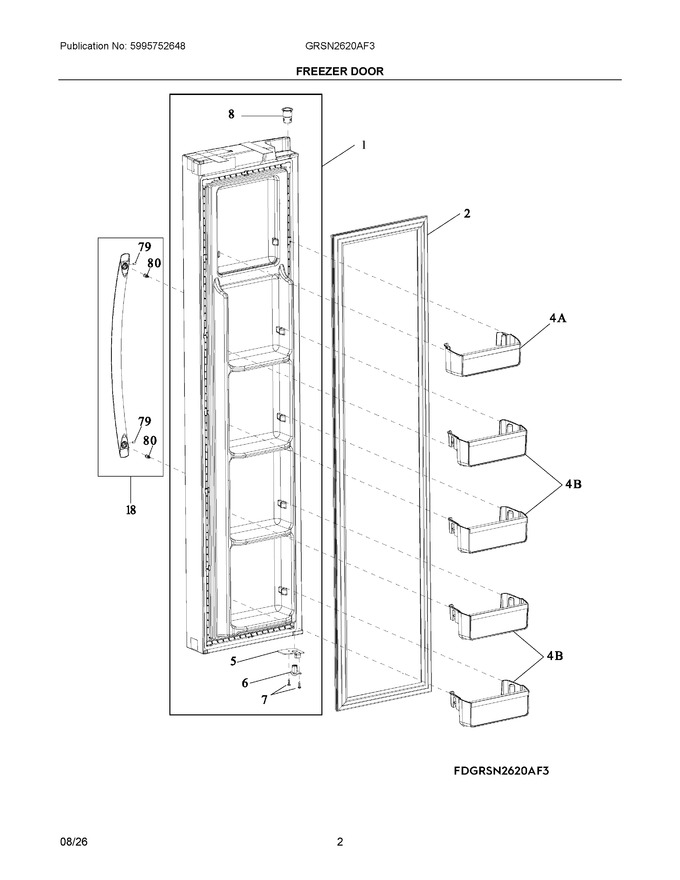

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304537323 | Door Assembly, Freezer, Stainless, Complete |
|
$ 314.39 | |||||
| 2 | 241786014 | Gasket Assembly, Freezer Door |
|
$ 95.17 | |||||
| 5 | 241990202 | Door Stop, Black, Frzr, Freezer, Lower |
|
Immediately | $ 21.27 | ||||
| 6 | 241990302 | Bearing Hinge, Lower, Freezer Door, Closer |
|
$ 7.09 | |||||
| 7 | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 8 | 241760402 | Bearing, Hinge, Top |
|
$ 19.13 | |||||
| 18 | 140186157115 | Handle, Door, Stainless, W/set Screws (Replaces: 5304527111) |
|
Immediately | $ 58.96 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 4A | 5304536364 | Bin Assembly, Pseudo, Upper (Replaces: 5304525907) |
|
$ 25.80 | |||||
| 4B | 5304536365 | Bin Assembly, Pseudo, Lower (Replaces: 5304525908) |
|
Immediately | $ 25.65 |
