Diagram # Part Number Description Series Availability Ships Price Add to Cart
20 5304537341 Bucket, Ice Appelez-nous -
26 242039702 Screw, Shoulder, #10-16 Type Ab, Lower Slides, W/washer Special Order $ 4.26

30 5304525945 Rail, Ice Container, Rh Appelez-nous -
31 5304525946 Rail, Ice Container, Lh Special Order $ 100.11

40 5304455650 Screw, Hex Washer Head, 8-15a X 0.625, Low Profile Special Order $ 14.18


    View Diagram in Separate Window     Print Icon   Print Part List

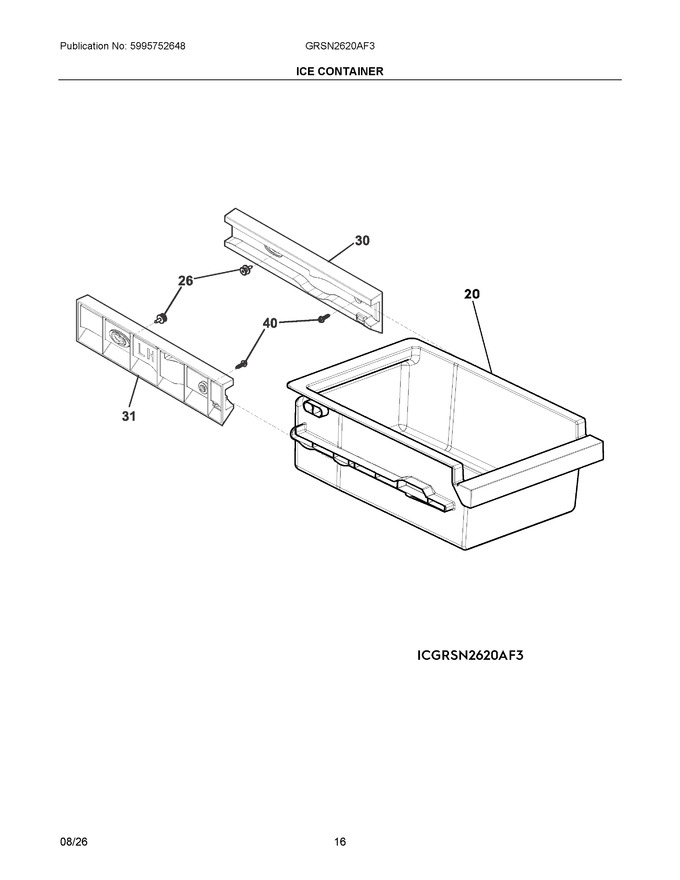

Diagram for GRSN2620AF3
