SELECT A DIAGRAM

01 - Cover Sheet

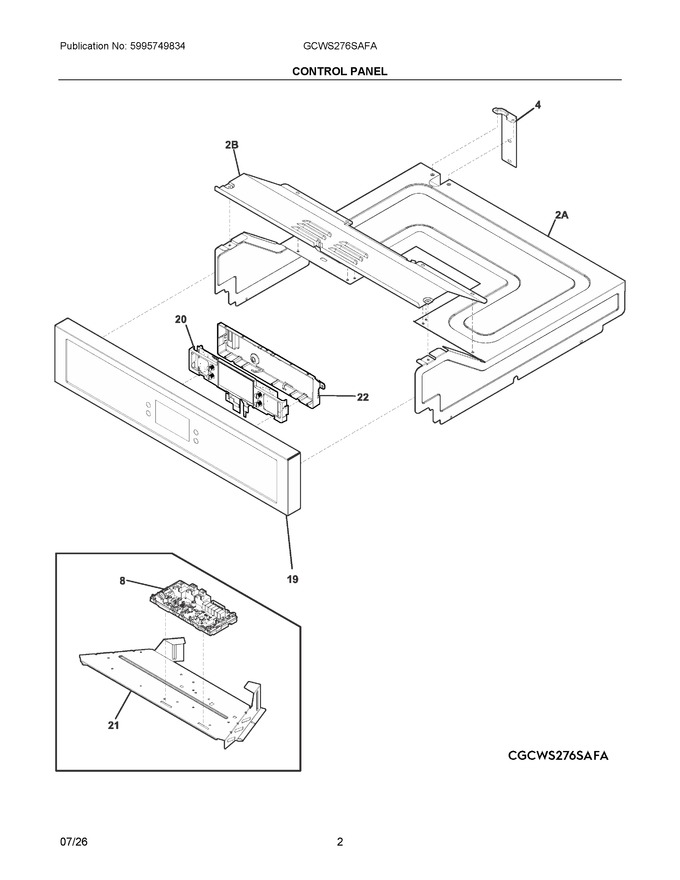

02 - Control Panel


03 - Body


04 - Door


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304532393		Bracket, Conduit		Appelez-nous	-
8	140171068061		Main Board Assembly, Ovc			Immediately	$ 127.86
19	140206690129		Control Panel, Stainless		Appelez-nous	-
21	139028002		Bracket, Mounting				$ 38.37
22	5304523582		Housing, Controller			Immediately	$ 34.13
20A	140232984306		User Interface, Assembly		Appelez-nous	-
2A	139003603		Cover, Oven Top				$ 69.99
2B	139003702		Cover, Control Access				$ 27.97
NI	5304532406		Harness, Wiring, Low Voltage		Appelez-nous	-
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NIA	318165800		Spacer, Glass, Foam				$ 17.72

    View Diagram in Separate Window       Print Part List
