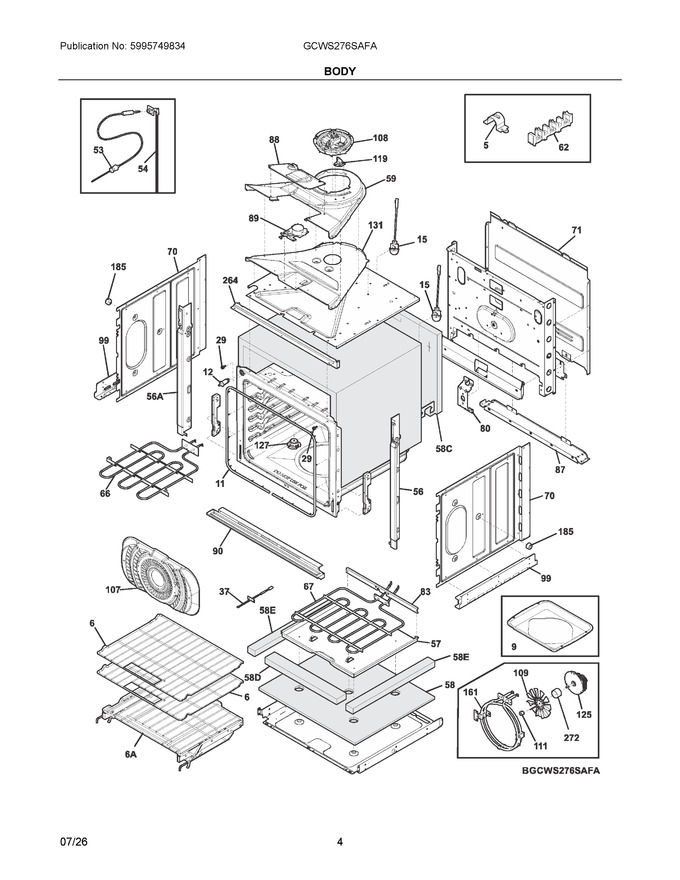

SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Body


04 - Door


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139011901		Rack, Oven, W/handle				$ 36.24
5	5304530364		Bracket, Conduit Mtg.		Appelez-nous	-
9	316081903		Tray, Steam, Midnight Black				$ 78.94
11	807545501		Seal, Oven Door, Gray			Immediately	$ 81.39
12	318394805		Switch, Light, Door				$ 8.06
15	140072023223		Lamp, Halogen, 40w				$ 13.71
23	808893101		Hinge, Front Frame, Top			Immediately	$ 31.19
24	5304461333		Screw, 10-32 X 17/32			Immediately	$ 13.46
37	5304525427		Probe, Temp			Immediately	$ 53.48
52	318074913		Pin, Hinge, Black			Immediately	$ 46.07
53	5304504202		Probe, Meat Temp, Red			Immediately	$ 106.19
54	139017203		Receptacle Assy, Meat Probe			Immediately	$ 153.09
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
57	5304538692		Box, Bake Element		Appelez-nous	-
58	5304506952		Insulation, Bake Element, Lower				$ 77.26
59	139027600		Duct, Cooling Fan, Upper				$ 85.76
62	5304535277		Terminal Block			Immediately	$ 3.96
66	140123969028		Element, Broil, 4000w		Appelez-nous	-
67	140010667149		Element, Hidden Bake, 2500w				$ 55.23
69	5304526494		Screw, Truss T-20, 8-32 X 3/16, Switch Mtg.			Immediately	$ 2.32
70	139000601		Shield, Insulation, Sides, (2)				$ 72.05
71	139022001		Shield, Rear Wire, Main Back		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
83	5304506951		Shield, Bake Element, Rear		Appelez-nous	-
87	139021901		Bracket, Cable Mtg.		Appelez-nous	-
88	5304506964		Cover, Latch Motor				$ 24.10
89	5304528835		Motor, Latch Assembly, 2 Terminal			Immediately	$ 74.12
90	318259864		Trim, Base, Stainless				$ 182.76
99	318256201		Bracket, Side, Bottom, (2)				$ 56.70
107	5304527949		Cover, Convection Fan, Midnight Black				$ 168.16
108	5304529887		Motor Assembly, Blower			Immediately	$ 177.12
109	5304525455		Blade, Fan, Convection				$ 14.41
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	5304538823		Thermostat, Safety			Immediately	$ 14.72
125	139008507		Motor, Convection Fan, 2 Speed				$ 97.16
127	5304538693		Tube Assembly, Vent			Immediately	$ 10.03
131	139027700		Duct, Cooling Fan, Lower				$ 73.00
137	318090310		Latch, Door			Immediately	$ 44.61
161	8581390065036		Element, Convection, 2500w				$ 47.63
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
264	808877504		Trim, Vent, Black			Immediately	$ 116.95
272	139021700		Tube, Convection Fan				$ 17.72
23A	808893102		Hinge, Front Frame, Bottom			Immediately	$ 29.06
56A	140299497010		Trim, Side, Rh		Appelez-nous	-
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
56AA	140299497028		Trim, Side, Lh		Appelez-nous	-
58C	5304506954		Insulation, Oven, Back		Appelez-nous	-
58D	5304506965		Insulation, Bake Element, Front		Appelez-nous	-
58E	5304506966		Insulation, Bake Element, Side		Appelez-nous	-
5A	140304432010		Rack, W/glides, 27		Appelez-nous	-
NI	318165800		Spacer, Glass, Foam				$ 17.72
NI	387856311		Screw, 4.2 X 10				$ 3.03
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	5304525447		Harness, Wiring, Main				$ 185.64
NI	5304525449		Harness, Wiring, Upper Ads				$ 53.94
NI	5304532406		Harness, Wiring, Low Voltage		Appelez-nous	-
NI	5304470882		Screw, Anti-tip, 8 - 5/8, Black, (2)				$ 13.46
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304528568		Screw, 4, 2x9.5		Appelez-nous	-
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304535368		Harness, Conduit Assy., Power Connect   (Replaces: 5304525431)				$ 154.45
NIA	316001017		Screw, Grounding, 10-24 X 1.835, Green				$ 3.03
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIC	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67

    View Diagram in Separate Window       Print Part List
