01 - Cover Sheet


02 - Control Panel

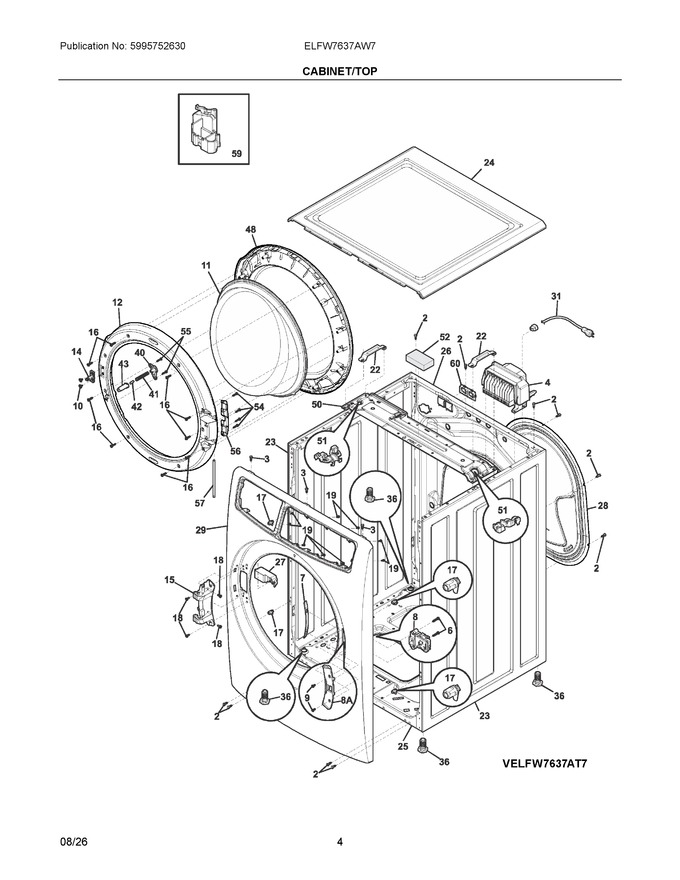

03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
3	131168202		Screw, #10-16 X .375, W/sealing Wshr		Appelez-nous	-
5	5304505174		Cover, Motor Control			Immediately	$ 17.62
6	137262100		Screw, Pan Head Quad, 10-14 X 1.00			Immediately	$ 9.93
7	5304505144		Cover, Hinge Holes				$ 4.19
8	5304514774		Door Lock, Assembly, W/switch			Immediately	$ 114.34
9	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
10	137241000		Screw, Quad Ph, 10-16 X 0.375				$ 10.63
11	5304529631		Glass, Door Window			Immediately	$ 110.40
12	5304536831		Door, Inner Frame		Appelez-nous	-
14	5304505088		Latch, Door			Immediately	$ 34.62
15	140200690026		Hinge Assembly, Door				$ 32.63
16	137087000		Screw, Comb Pnhd B, #10-16x.75, (9)			Immediately	$ 11.34
17	5304505102		Clip, Front Panel, (4)				$ 13.74
18	5304505259		Screw, Quad Ph Type A, M5 X 0.8 X 14.5, (4)			Immediately	$ 16.43
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
22	5304505101		Bracket, Spring, (2)				$ 13.01
23	5304505139		Side Panel, Washer, White   (Replaces: 5304535902)			Immediately	$ 242.13
24	5304535900		Work Top, White		Appelez-nous	-
25	134646007		Base, Washed			Immediately	$ 237.84
26	5304529716		Panel, Back				$ 193.74
27	5304505104		Protection, Door Lock			Immediately	$ 14.90
28	134646206		Panel, Back   (Replaces: 8581346462048)				$ 52.83
29	5304505058		Panel, Washer Front, White			Immediately	$ 253.17
31	5304522525		Power Cord, Electric Svce			Immediately	$ 62.13
32	5303209428		Bushing, Strain Relief				$ 17.01
36	5304522555		Leveling Leg, Screw, Plastic			Immediately	$ 21.81
40	5304505328		Cap, Door Vent				$ 15.90
41	5304505329		Spring, Door Vent				$ 15.90
42	140311347011		Magnet, Door Vent		Appelez-nous	-
43	5304532026		Button, Door Vent		Appelez-nous	-
48	5304529890		Frame Assembly, Door, External, W/outer Lens				$ 151.69
50	5304505087		Bracket, Tub Suspension				$ 54.23
51	5304505221		Protector, Tub Bracket, Spring Hook, (2)				$ 15.90
52	131931203		Dampener, Vibration, Foam		Appelez-nous	-
54	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
55	3205150		Screw, 8-12b X 0.750				$ 3.55
56	5304529750		Bracket, Hinge			Immediately	$ 19.52
57	5304529871		Pin, Hinge			Immediately	$ 30.37
59	5304505311		Support, Connector				$ 11.57
60	5304514806		Grommet, Dispenser, Back Panel				$ 8.68
4A	140291251035		Motor Control, Assembly				$ 121.64
8A	5304505103		Cover, Door Lock, Front Flange			Immediately	$ 236.25
NI	134876501		Clip, Shipping Clamp, Rear-panel   (Replaces: 134876500)				$ 19.85
NI	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces: 5303321209)				$ 10.63
NI	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
NI	5308014215		Screw, Sheet Metal, 6-20 X 0.375, (2)   (Replaces: 134477400)				$ 2.28
NI	131202300		Screw, 10-16ab X 0.625			Immediately	$ 13.46
NI	134591400		Plug, Hole, (7), Rear Cabinet				$ 21.27
NI	140108606066		Wiring Harness, Main				$ 133.69
NI	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg				$ 12.76
NI	134178901		Screw, 8-18ab X 0.455				$ 14.89
NIA	5304529873		Gasket, Work Top				$ 19.52
NIA	5304522524		Harness, Wiring, Door Lock Dbl				$ 59.95
NIA	137110800		Cushion, Shock Bracket, Left Rear				$ 13.46
NIA	131931202		Dampener, Vibration, Foam				$ 17.35
