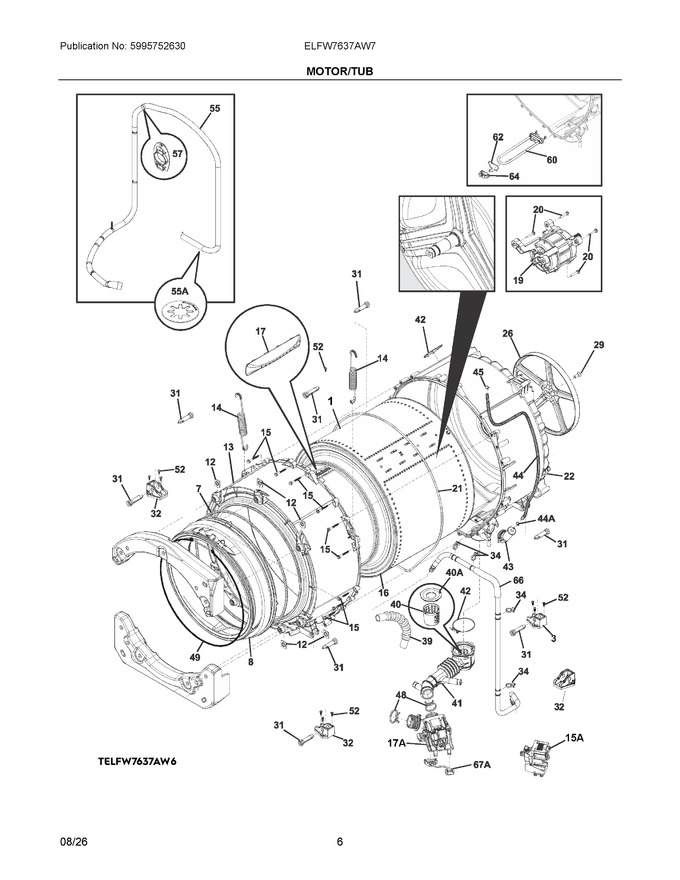

04 - Motor/tub
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304536825 | Drum, Assembly, 1200 |
|
Immediately | $ 276.54 | ||||
| 7 | 140318381013 | Spring, Wire Clamp, Bellows |
|
- | |||||
| 8 | 140296296043 | Bellows, Door Boot |
|
$ 130.80 | |||||
| 12 | 5304505175 | Plate, Conterweight, (7), W/nut Insert |
|
$ 13.01 | |||||
| 13 | 5304531937 | Shell, Tub, Front |
|
- | |||||
| 14 | 5304505117 | Spring, Tub Supsension, (2) |
|
Immediately | $ 67.44 | ||||
| 17 | 137263600 | Vane |
|
Immediately | $ 53.07 | ||||
| 18 | 131302800 | Screw, Quadrex Ph, 10-16ab X 0.5 |
|
Immediately | $ 26.58 | ||||
| 19 | 140285511014 | Motor, Washer |
|
Immediately | $ 136.09 | ||||
| 20 | 131303500 | Screw, 12-14ab X 1.50, Motor Mtg. |
|
$ 12.05 | |||||
| 21 | 5304522569 | Seal, Tub Shell |
|
Immediately | $ 58.56 | ||||
| 22 | 5304505157 | Shell, Outer Tub, Rear, W/bearing, Seal |
|
Immediately | $ 476.42 | ||||
| 25 | 140297501011 | Belt, Elastic, Poly-v |
|
- | |||||
| 26 | 5304514822 | Pulley, Drum Drive, Rear |
|
Immediately | $ 183.38 | ||||
| 29 | 5304505380 | Bolt, W/washer, M10 X 1.5 |
|
Immediately | $ 34.88 | ||||
| 30 | 137412701 | Shock Absorber, Dual Stage |
|
Immediately | $ 76.15 | ||||
| 31 | 5304532011 | Pin, Shock Mtg. |
|
Immediately | $ 7.96 | ||||
| 32 | 134363200 | Bracket, Shock Mtg. |
|
$ 19.13 | |||||
| 33 | 134160900 | Screw, Washer Hd, 10-16ab X 0.75 |
|
$ 12.05 | |||||
| 34 | 5304528020 | Cable Tie, Push Mount |
|
$ 9.41 | |||||
| 39 | 5304505163 | Pipe, Cw Flow |
|
Immediately | $ 41.36 | ||||
| 40 | 5304505165 | Filter, Pump |
|
$ 16.63 | |||||
| 41 | 140026855035 | Hose, Coin Trap, Tub To Pump |
|
$ 35.53 | |||||
| 42 | 134737300 | Clamp, Hose |
|
$ 20.13 | |||||
| 43 | 5304535707 | Air Chamber, Assembly |
|
- | |||||
| 44 | 5304535282 | Hose, Pressure Switch (Replaces: 5304505210) |
|
$ 34.18 | |||||
| 45 | 137087500 | Clamp, Hose |
|
$ 10.13 | |||||
| 46 | 134261300 | Clip, Drain Hose, Push-mount |
|
$ 12.05 | |||||
| 48 | 5304536802 | Clamp, Hose |
|
Immediately | $ 4.01 | ||||
| 49 | 134616300 | Clamp, Bellows, Spring Held |
|
Immediately | $ 35.44 | ||||
| 50 | 5304536803 | Clamp, Hose, Wire |
|
$ 4.01 | |||||
| 52 | 131202300 | Screw, 10-16ab X 0.625 |
|
Immediately | $ 13.46 | ||||
| 55 | 137629208 | Drain Hose, Assembly, One Piece, W/cable Ties |
|
Immediately | $ 68.11 | ||||
| 57 | 134641100 | Bracket, Drain Hose Mtg, Rear |
|
$ 19.85 | |||||
| 60 | 5304534256 | Element, Heating, 1000w, W/ntc |
|
$ 90.70 | |||||
| 62 | 134642300 | Support, Heating Element |
|
$ 20.08 | |||||
| 64 | 5304505156 | Cover, Heater Support |
|
$ 15.63 | |||||
| 66 | 5304526694 | Hose, Recirculating, Pipe, W/clamps |
|
Immediately | $ 48.61 | ||||
| 15A | 5304514769 | Pump Assembly, Circulation (Replaces: 5304509040) |
|
Immediately | $ 178.97 | ||||
| 17A | 5304514775 | Pump Assembly, Drain, Jet System (Replaces: 5304509619) |
|
Immediately | $ 214.71 | ||||
| 30A | 140251904011 | Hose, Inlet, Dispenser |
|
- | |||||
| 30B | 137412601 | Shock Absorber, Single Stage |
|
Immediately | $ 50.72 | ||||
| 40A | 5304505169 | Cover, Filter |
|
$ 19.52 | |||||
| 55A | 137385100 | Ring, Anti-syphon |
|
$ 14.18 | |||||
| 64A | 5304505439 | Screw, Heater Cover |
|
$ 9.41 | |||||
| 67A | 137297000 | Pad, Pump |
|
$ 51.74 | |||||
| NI | 131303900 | Screw, Hex Washer Head, 1/4-10a X 2.165 |
|
$ 15.60 | |||||
| NI | 134637200 | Screw, #10-16x1.125, Hexwasher Head |
|
$ 14.18 | |||||
| NI | 5304464772 | Cable Tie, 5.60 Inch, Plastic (Replaces: 5303321209) |
|
$ 10.63 | |||||
| NI | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| NIA | 131931202 | Dampener, Vibration, Foam |
|
$ 17.35 | |||||
| NIA | 137110800 | Cushion, Shock Bracket, Left Rear |
|
$ 13.46 | |||||
| NIB | 5304505433 | Pad, Rubber |
|
$ 15.18 |
