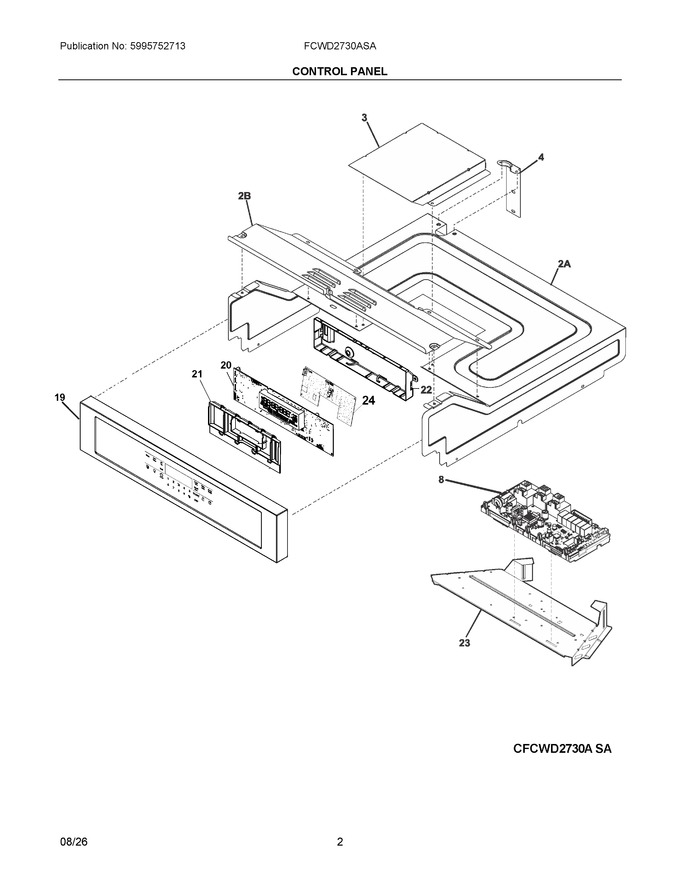

01 - Cover Sheet


02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304532393		Bracket, Conduit		Appelez-nous	-
8	140184940058		Main Board, Ovc				$ 169.36
19	140206690160		Control Panel, Assembly, Stainless		Appelez-nous	-
20	140225818156		User Interface Assembly, Ui455d		Appelez-nous	-
21	5304533876		Chassis, Control			Immediately	$ 17.91
22	5304538627		Cover, Control Ui		Appelez-nous	-
23	139028002		Bracket, Mounting				$ 38.37
24	140199403035		Control Board, Hmi Hector		Appelez-nous	-
2A	139003603		Cover, Oven Top				$ 69.99
2B	139003702		Cover, Control Access				$ 27.97
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NI	140200603110		Wiring Harness, Hmi Hector, Jumper		Appelez-nous	-
NI	5304535368		Harness, Conduit Assy, Power Connect				$ 154.45
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	140233209034		Wiring Harness, Mdl Tachometer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
