SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram

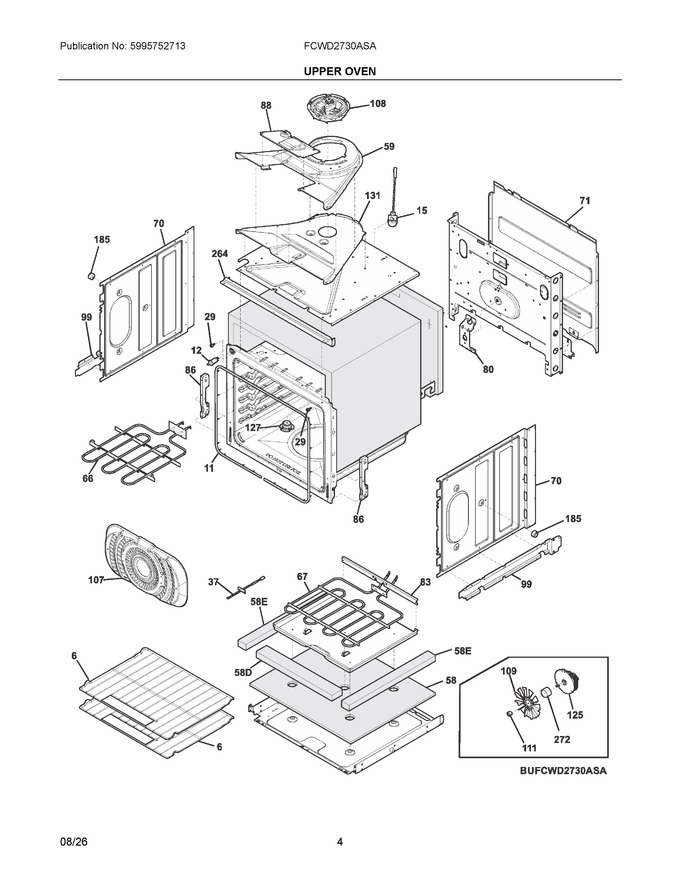

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139011901		Rack, Oven, W/handle				$ 36.24
11	807545501		Seal, Oven Door, Gray			Immediately	$ 81.39
12	318394805		Switch, Light, Door				$ 8.06
15	140072023223		Lamp, Halogen, 40w				$ 13.71
29	316517600		Bumper, Front, Main				$ 12.05
37	5304525427		Probe, Temp			Immediately	$ 53.48
44	316517600		Bumper, Front, Main				$ 12.05
58	5304506952		Insulation, Bake Element, Lower				$ 77.26
59	139027600		Duct, Cooling Fan, Upper				$ 85.76
70	139000601		Shield, Insulation, Sides, (2)				$ 72.05
71	139022001		Shield, Rear Wire, Main Back		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
83	5304506951		Shield, Bake Element, Rear		Appelez-nous	-
86	808930503		Receptacle, Hinge, Soft Close		Appelez-nous	-
88	5304506964		Cover, Latch Motor				$ 24.10
99	318256201		Bracket, Side, Bottom, (2)				$ 56.70
107	5304527949		Cover, Convection Fan, Midnight Black				$ 168.16
108	5304529887		Motor Assembly, Blower			Immediately	$ 177.12
109	5304525455		Blade, Fan, Convection				$ 14.41
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
125	139008500		Motor, Convection Fan			Immediately	$ 216.23
127	5304538693		Tube Assembly, Vent			Immediately	$ 10.03
131	139027700		Duct, Cooling Fan, Lower				$ 73.00
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
264	139003501		Trim, Vent, Black, Front				$ 36.20
272	139021700		Tube, Convection Fan				$ 17.72
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
58D	5304506965		Insulation, Bake Element, Front		Appelez-nous	-
58E	5304506966		Insulation, Bake Element, Side		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304470882		Screw, Anti-tip, 8 - 5/8, Black, (2)				$ 13.46
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304525449		Harness, Wiring, Upper Ads				$ 53.94
NI	5304535278		Bracket, Blower Cover		Appelez-nous	-
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NI	387856311		Screw, 4.2 X 10				$ 3.03
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	139022101		Insulation, Noise Dampening		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
