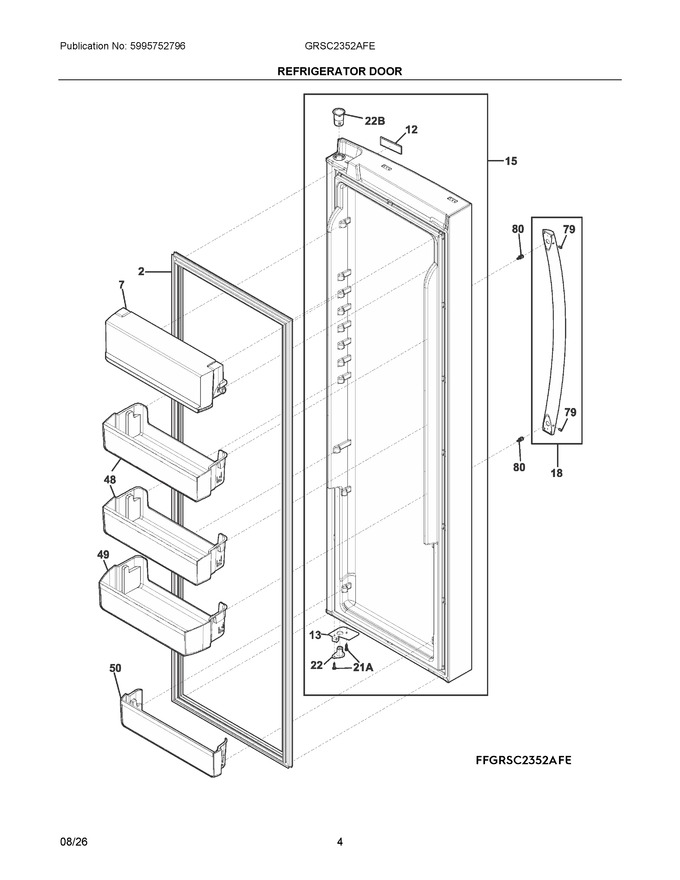

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241510207 | Gasket, Magnetic, Door |
|
Immediately | $ 97.14 | ||||
| 7 | 5304526896 | Dairy Compartment, Assembly, Complete |
|
$ 142.57 | |||||
| 12 | 5304512150 | Nameplate, Chrome, Frig Gallery |
|
Immediately | $ 58.15 | ||||
| 13 | 241990201 | Door Stop, Black, Ref |
|
$ 21.27 | |||||
| 15 | 5304526960 | Door Assembly, Fresh Food, Stainless, Complete |
|
$ 479.79 | |||||
| 18 | 140186157115 | Handle, Door, Stainless, W/set Screws (Replaces: 5304527111) |
|
Immediately | $ 58.96 | ||||
| 22 | 241990301 | Bearing-hinge, Gray |
|
$ 7.09 | |||||
| 48 | 5304536375 | Bin Assembly, 2 Liter, Ff Door |
|
Immediately | $ 23.62 | ||||
| 49 | 5304536374 | Bin, Gallon, Fresh Food, W/trim (Replaces: 5304535012) |
|
$ 25.51 | |||||
| 50 | 5304535013 | Bin, Lower, Fresh Food, W/trim |
|
- | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760404 | Bearing, Hinge, Top |
|
$ 12.76 |
