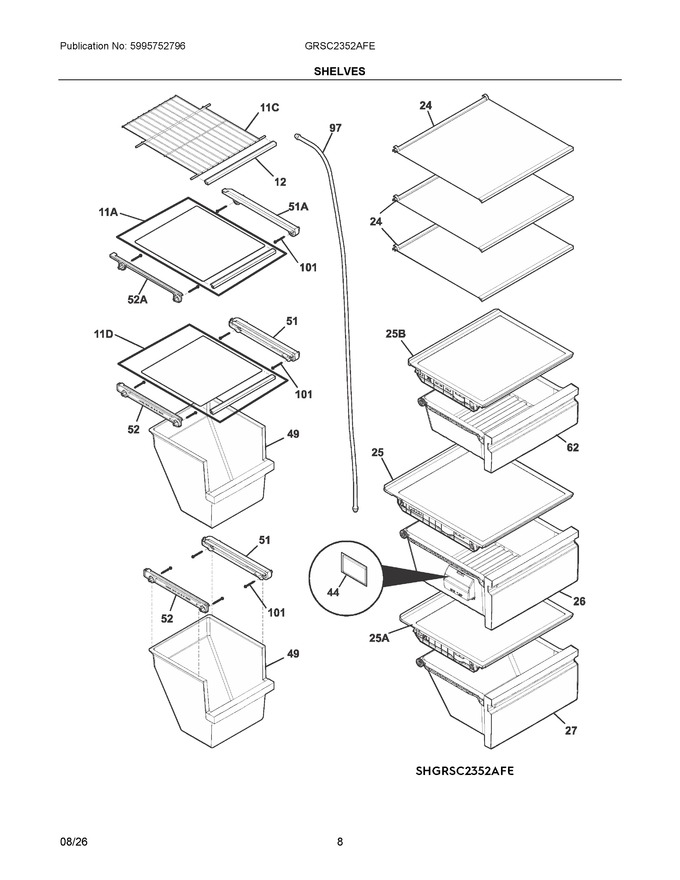

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 5304527117 | Trim, Wire Shelf, Metalic, Freezer, Front |
|
- | |||||
| 24 | 140279024461 | Glass Shelf, Assembly, W/trim |
|
- | |||||
| 25 | 140116198155 | Crisper Cover, Assembly, Glass, Upper, W/trim-gasket (Replaces: 5304526921) |
|
Immediately | $ 84.06 | ||||
| 26 | 5304526930 | Crisper Pan, Upper Assy, W/rollers, Trim |
|
Immediately | $ 221.84 | ||||
| 27 | 5304526931 | Crisper Pan, Lower Assy, W/rollers, Trim |
|
$ 211.53 | |||||
| 44 | FRPAPKRF | Absorber, Ethylene |
|
Immediately | $ 15.60 | ||||
| 49 | 5304536373 | Basket, Sliding, Freezer, W/trim |
|
$ 73.97 | |||||
| 51 | 5304540164 | Lower Rail, Freezer Sxs, 23cd, Rh |
|
- | |||||
| 52 | 5304540163 | Lower Rail, Freezer Sxs, 23cd, Lh |
|
- | |||||
| 62 | 5304526932 | Deli Pan, Assembly, W/rollers, Trim |
|
$ 203.03 | |||||
| 97 | 242220119 | Tube, Water, 97.5", Natural, Ilter, Secondary Valve |
|
Immediately | $ 30.47 | ||||
| 101 | 218493101 | Screw, Hex Washer Head, 8-18ab X 1-3/4 |
|
$ 13.46 | |||||
| 11A | 140279024487 | Glass Shelf, Assembly, Upper Fz, W/trim |
|
- | |||||
| 11C | 8588090782034 | Wire Shelf, Assembly, Pizza |
|
- | |||||
| 11D | 140279024479 | Glass Shelf, Assembly, Lower Fz, W/trim |
|
- | |||||
| 25A | 5304526922 | Crisper Cover, Assembly, Glass, Lower, W/trim-gasket |
|
$ 132.59 | |||||
| 25B | 5304526923 | Deli Cover, Assembly, Glass, W/trim-gasket |
|
$ 131.87 | |||||
| 51A | 140287167021 | Rail, Upper, Freezer, Rh |
|
- | |||||
| 52A | 140287168029 | Rail, Upper, Freezer, Lh |
|
- | |||||
| NI | 5304508016 | Roller, Crisper Pan |
|
Immediately | $ 9.42 | ||||
| NIA | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIB | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 |
