01 - Cover Sheet

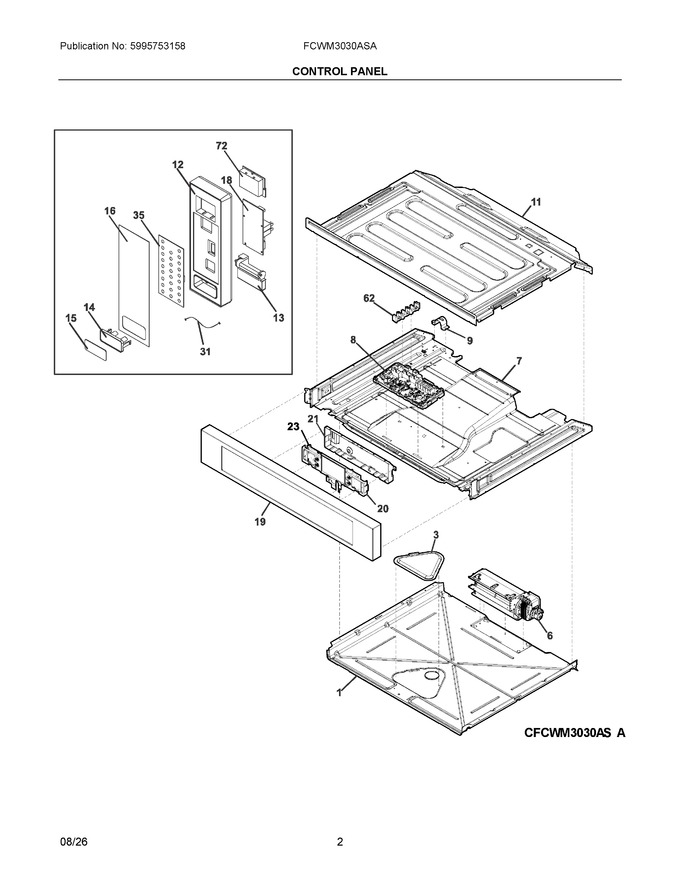

02 - Control Panel
03 - Upper Oven
04 - Lower Oven
05 - Doors
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304526320 | Shield, Bottom Duct |
|
- | |||||
| 3 | 5304526366 | Cover, Vent |
|
- | |||||
| 6 | 140175788037 | Blower, Assembly |
|
Immediately | $ 100.37 | ||||
| 7 | 5304526538 | Carrier Plate, Assembly, W/duct |
|
- | |||||
| 8 | 140171068087 | Pc Board, Ovc |
|
$ 127.45 | |||||
| 9 | 5304530364 | Bracket, Conduit Mtg. |
|
- | |||||
| 11 | 5304532474 | Shield, Top Cover |
|
Immediately | $ 116.08 | ||||
| 12 | 5304520027 | Control Panel, Microwave, Black |
|
$ 87.16 | |||||
| 13 | 5304520026 | Lever, Door Opening |
|
$ 17.78 | |||||
| 14 | 5304520028 | Button, Door Opening, Black |
|
- | |||||
| 15 | 5304520025 | Trim, Button, Cover, Decorative |
|
- | |||||
| 16 | 5304520029 | Membrane, Touch Pad |
|
$ 123.47 | |||||
| 18 | 5304520031 | Pc Board, Control |
|
$ 241.46 | |||||
| 19 | 140171002201 | Control Panel, Assembly, Stainless |
|
- | |||||
| 20 | 140225818123 | Controller, Electronic, Ui455s |
|
- | |||||
| 21 | 5304533876 | Chassis, Control |
|
Immediately | $ 17.91 | ||||
| 23 | 140199403027 | Control Board, Hmi Hector |
|
$ 49.37 | |||||
| 31 | 5304520032 | Connector |
|
- | |||||
| 35 | 5304520030 | Pc Board, Touch Pad, User Interface |
|
$ 187.97 | |||||
| 62 | 5304535277 | Terminal Block |
|
Immediately | $ 3.96 | ||||
| 72 | 5304519326 | Pc Board, Display |
|
$ 184.68 | |||||
| NI | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- | |||||
| NI | 140220067130 | Wiring Harness, Mdl, Temp Probe |
|
- | |||||
| NI | 140200603110 | Wiring Harness, Hmi Hector, Jumper |
|
- | |||||
| NI | 140178159061 | Wiring Harness, Main |
|
- | |||||
| NI | 140177694035 | Harness, Power Connect |
|
- | |||||
| NI | 5304535368 | Harness, Conduit Assy, Power Connect |
|
$ 154.45 | |||||
| NI | 5304532105 | Harness, Wiring, Upper Oven, Ds |
|
$ 19.51 | |||||
| NI | 5304532099 | Harness, Wiring, Wall Oven, Macs |
|
$ 22.45 | |||||
| NI | 5304526234 | Screw, M4, 2 X 10, Sheet Metal, Black |
|
$ 3.03 | |||||
| NI | 387872717 | Screw, M4, 2 X 10, Black, W/washer |
|
- | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NIB | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 11.34 | |||||
| NIC | 5304528293 | Screw, T20, 8-18 X .79 |
|
- |
