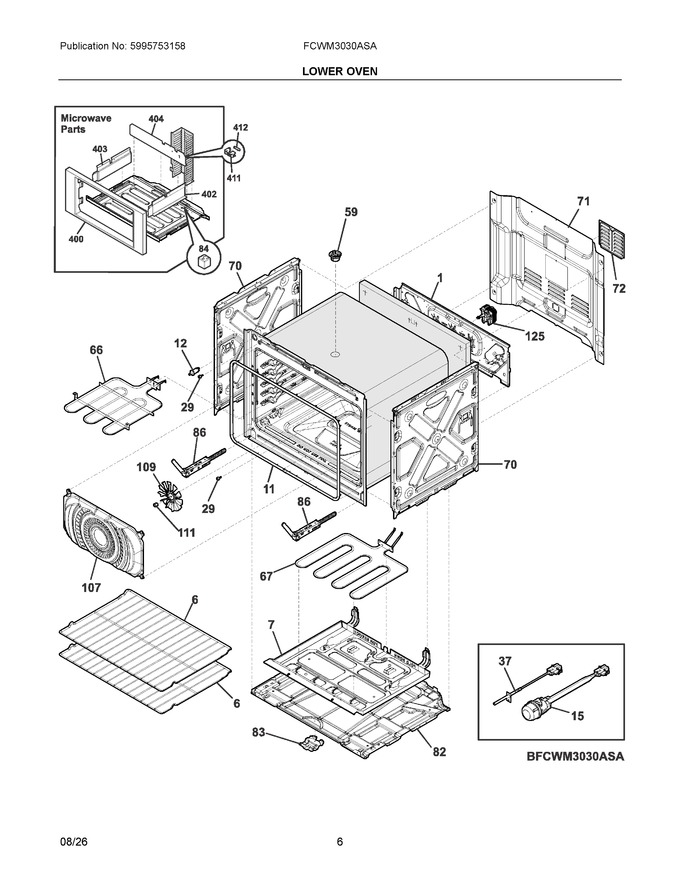

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140152666099		Mounting Panel, Base		Appelez-nous	-
6	5304531722		Rack, Oven, Flat			Immediately	$ 51.05
7	5304528326		Tray, Hidden Bake				$ 52.33
8	5304526320		Shield, Bottom Duct		Appelez-nous	-
9	5304530364		Bracket, Conduit Mtg.		Appelez-nous	-
10	5304532474		Shield, Top Cover			Immediately	$ 116.08
11	5304526242		Seal, Oven Door, Charcoal			Immediately	$ 144.09
12	318394805		Switch, Light, Door				$ 8.06
15	5304533411		Lamp Assembly, Halogen, G9, 40w, 120v   (Replaces: 5304530343)			Immediately	$ 36.50
29	316517600		Bumper, Front, Main				$ 12.05
37	5304526310		Probe, Oven Sensor			Immediately	$ 43.17
44	318647300		Fuse Holder, Assembly, 412 #, 20a, W/fuse			Immediately	$ 217.73
59	140169214032		Tube, Vent Catalyst   (Replaces: 5304526450)		Appelez-nous	-
66	140156193199		Element, Broil   (Replaces: 140195757137)		Appelez-nous	-
67	140156196192		Element, Hidden Bake, 2500w		Appelez-nous	-
70	5304526314		Panel, Side, Exterior				$ 70.83
71	5304526329		Shield, Rear Wire				$ 78.87
72	5304526588		Cover, Convection Mtr				$ 17.01
82	5304536537		Plate-ext Bottom Sc Wo Raw				$ 33.81
86	5304526279		Hinge, Oven Door, Orange, 2 Spring			Immediately	$ 70.22
107	5304526365		Cover, Fan, Midnight Black, Convection		Appelez-nous	-
109	5304525455		Blade, Fan, Convection				$ 14.41
111	561231207		Nut, Fan Blade			Immediately	$ 18.35
125	5304528165		Motor, Convection Fan			Immediately	$ 75.78
400	5304530370		Trim Assembly, Microwave, Stainless, Front		Appelez-nous	-
402	5304527950		Support, Side, Rh		Appelez-nous	-
403	5304527951		Support, Side, Lh		Appelez-nous	-
404	5304527952		Support, Back		Appelez-nous	-
411	318647300		Holder, Fuse   (Replaces: 318576200)			Immediately	$ 217.73
412	318647300		Fuse, 20 Amp   (Replaces: 318576100)			Immediately	$ 217.73
NI	5304530450		Anti Tip, Kit				$ 37.76
NI	387856311		Screw, 4.2 X 10				$ 3.03
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304528568		Screw, 4, 2x9.5		Appelez-nous	-
NI	5304535247		Harness-power Supply Mc, 84 #		Appelez-nous	-
NI	5304535368		Harness, Conduit Assy, Power Connect				$ 154.45
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	387872810		Screw, Sheet Metal, 4.2 X 10		Appelez-nous	-
NI	349127302		Screw, Self Drill, D3.5 X 10, Zinc		Appelez-nous	-
NI	5304532099		Harness, Wiring, Wall Oven, Macs				$ 22.45
NI	5304532105		Harness, Wiring, Upper Oven, Ds				$ 19.51
NI	5304534695		Screw, Self Drill, M3.5 X 9.5				$ 3.67
NIA	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NIA	5304526532		Screw, M4.2 X 9.5, Black				$ 3.03
NIA	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
