SELECT A DIAGRAM

01 - Cover Sheet

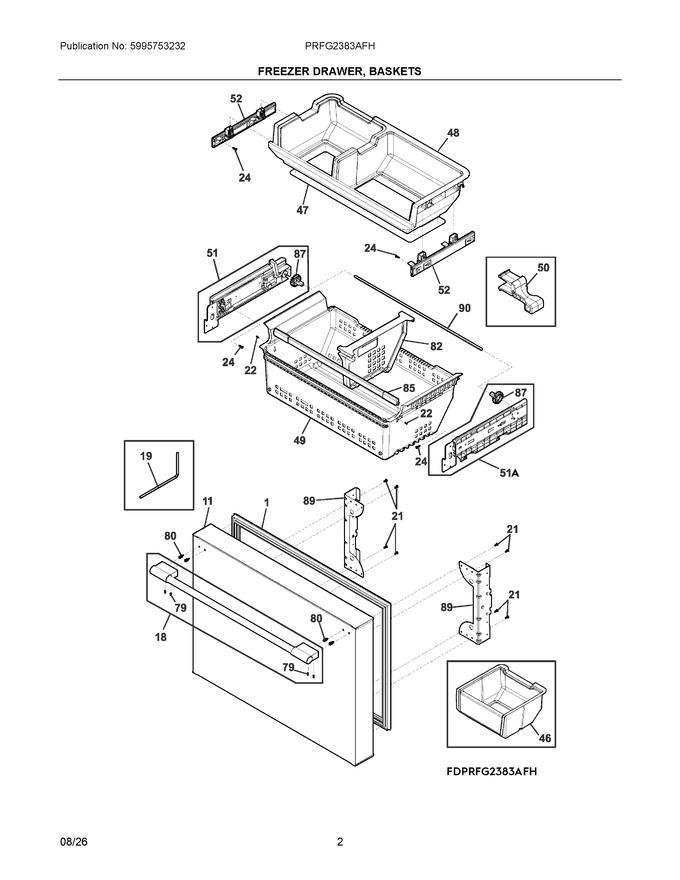

02 - Freezer Drawer, Baskets


03 - Fresh Food Door


04 - Cabinet


05 - Shelves


06 - Cooling System


07 - Controls


08 - Ice Maker


09 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304537408		Gasket, Freezer Drawer, White, 36", Magnetic			Immediately	$ 86.28
11	5304537104		Door, Foamed, Freezer, Flat				$ 495.87
18	5304535090		Handle Assembly Verticle Pro		Appelez-nous	-
19	5304508270		Wrench, Allen, Set Screw			Immediately	$ 21.34
21	241690602		Screw, Quadrex, #10-16 Hilo			Immediately	$ 10.63
22	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
24	240383412		Screw, Truss Hd Quad, #10-16 X .750, Zinc				$ 11.44
46	5304532882		Container, Ice, Freezer			Immediately	$ 80.70
47	5304531175		Glass, Basket, Upper				$ 132.06
48	5304537203		Basket, Freezer, Upper Cd, Gall		Appelez-nous	-
49	5304526200		Basket, Freezer, Lower			Immediately	$ 147.57
50	5304501271		Clip, Freezer Basket			Immediately	$ 15.60
51	5304507976		Slide Assembly, Basket Lower, Lh, W/pinion			Immediately	$ 236.77
52	5304537226		Freezer Slide, Assembly, Upper Lh			Immediately	$ 45.15
79	218755405		Screw, Set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	5304537280		Screw, Mount, Handle		Appelez-nous	-
82	5304529990		Divider, Lower Basket, Freezer		Appelez-nous	-
85	242139301		Beam, Support, Divider, Lower Basket				$ 73.71
87	5304507999		Pinion, Gear				$ 10.62
89	5304509676		Bracket, Freezer Drawer, (2)				$ 77.36
90	241770705		Bar, Timing, Gray				$ 50.66
51A	5304507977		Slide Assembly, Basket Lower, Rh, W/pinion			Immediately	$ 252.53
52A	5304537225		Freezer Slide, Assembly, Upper Rh		Appelez-nous	-
NI	242039702		Screw, Shoulder, #10-16 Type Ab, Lower Slides, W/washer				$ 4.26
NI	242146401		Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4)			Immediately	$ 14.27

    View Diagram in Separate Window       Print Part List
