SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Drawer, Baskets


03 - Fresh Food Door


04 - Cabinet

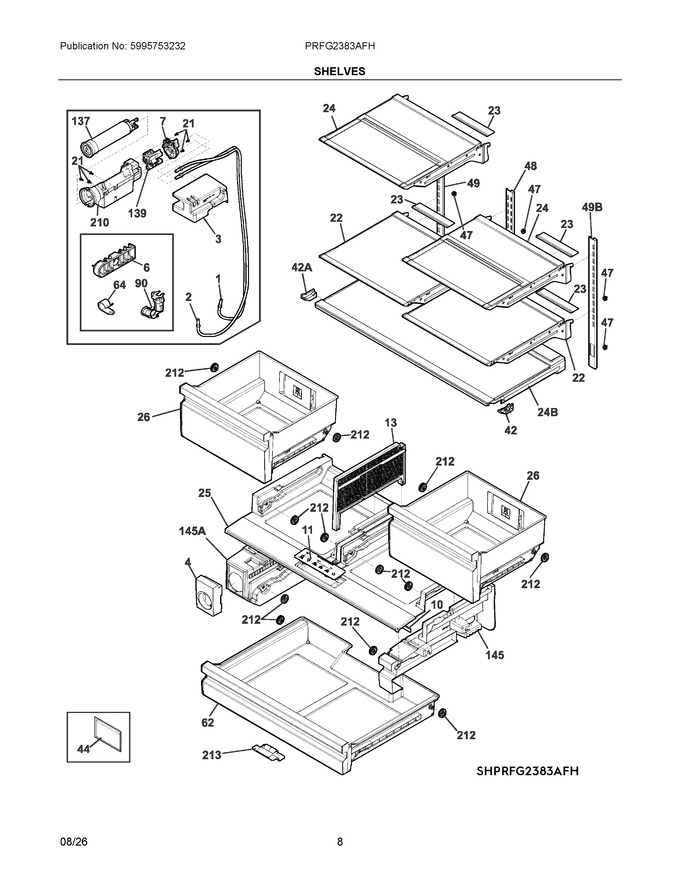

05 - Shelves


06 - Cooling System


07 - Controls


08 - Ice Maker


09 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242220131		Tube, Water, 44.89", Brown, Valve, To Filter Inlet			Immediately	$ 15.32
2	242220132		Tube, Water, 47.24", Natural, Filter Outlet, To Valve			Immediately	$ 15.32
3	5304531114		Insulation, Water Line				$ 5.91
4	140267200016		Fascia, Water Filter			Immediately	$ 11.48
6	5304531203		Clamp, Water Tube				$ 4.71
7	5304531689		Support, Water Filter			Immediately	$ 11.13
10	241872205		Beam, Support, Deli		Appelez-nous	-
11	140147091031		User Interface, Assembly, Drawer Panel			Immediately	$ 117.69
13	5304532879		Support, Crispers, Center		Appelez-nous	-
21	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
22	5304538361		Fixed Shelf, Assembly, 1/2w, Cobra		Appelez-nous	-
23	5304530899		Buffer, Shelf Air				$ 8.44
24	5304530904		Shelf Assembly, Slide Under, 1/2 Width, W/trim-glass				$ 139.28
25	5304535036		Cd Deli Cover Assy		Appelez-nous	-
26	5304538877		Crisper Pan Assy - Cd   (Replaces: 5304538864)				$ 129.46
42	5304531177		Support, Crisper, White, Rh			Immediately	$ 4.80
44	FRPAPKRF		Filter, Absorber, Ethylene			Immediately	$ 15.60
47	242081301		Screw-shoulder		Appelez-nous	-
48	242122102		Channel, Shelf Mtg., Center				$ 43.23
49	242122205		Channel-shelf Mtg, Side, Lh				$ 61.58
62	5304538872		Cd Deli Pan Assy		Appelez-nous	-
64	240396801		Clamp, Tube/wiring, 1/2", Nylon, Black/natural				$ 19.13
90	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
137	FPPWFU01		Filter, Water, Wf-1, Frig Purepour			Immediately	$ 80.38
139	140156010054		Manifold, Water Filter				$ 30.57
145	5304530994		Support Assembly, Deli, Rh, W/roller		Appelez-nous	-
210	5304530987		Housing, Water Filter			Immediately	$ 11.57
212	5304508016		Roller, Crisper Pan			Immediately	$ 9.42
213	242010901		Roller Assy, Deli Pan				$ 49.62
145A	5304531039		Support, Deli, Lh				$ 136.35
24B	5304537808		Crisper Cover, Assembly, Gallery		Appelez-nous	-
42A	5304531176		Support, Crisper, White, Lh				$ 4.80
49B	242122303		Channel, Shelf Mtg., Side, Rh				$ 48.54
NIA	5304531023		Harness, Wiring, Water Filter			Immediately	$ 28.16
NIA	5304530898		Harness, Wiring, Drawer, Temp Control			Immediately	$ 165.33
NIA	242039702		Screw, Shoulder, #10-16 Type Ab, Lower Slides, W/washer				$ 4.26

    View Diagram in Separate Window       Print Part List
