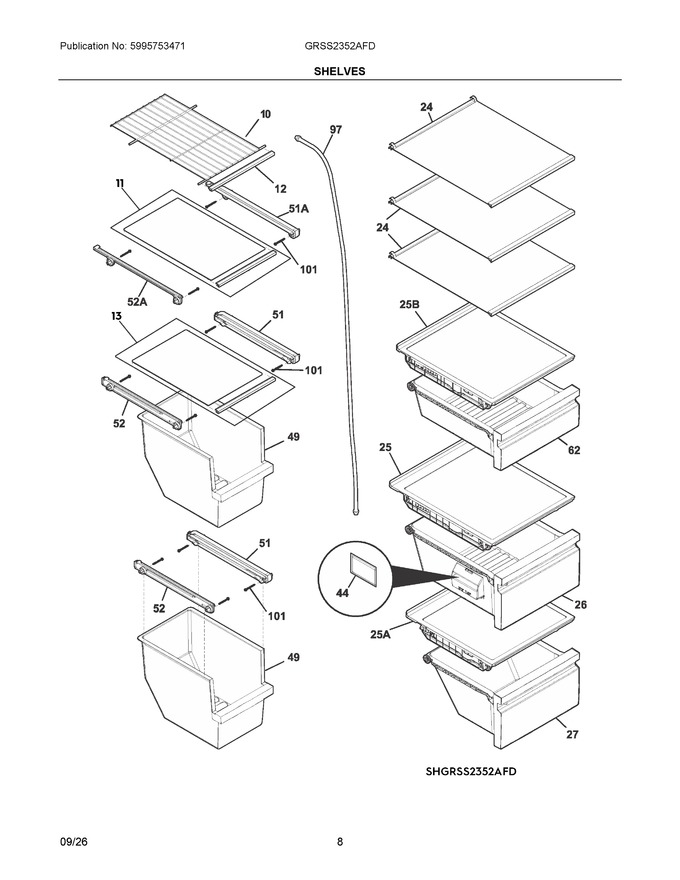

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	8588090781028		Wire Shelf, Freezer, Sxs		Appelez-nous	-
11	140279024503		Glass Shelf, Assembly, Lower Freezer		Appelez-nous	-
12	5304527118		Trim, Wire Shelf, Metallic, Freezer, Front		Appelez-nous	-
13	140279024511		Glass Shelf, Assembly, Upper Freezer		Appelez-nous	-
24	140279024495		Glass Shelf, Assembly, Refrigerator		Appelez-nous	-
25	140116199153		Crisper Cover, Assembly, Glass		Appelez-nous	-
26	5304526933		Crisper Pan, Upper Assy, W/rollers, Trim				$ 216.35
27	5304526934		Crisper Pan, Lower Assy, W/rollers, Trim				$ 185.36
44	FRPAPKRF		Absorber, Ethylene			Immediately	$ 15.60
49	5304536371		Basket Freezer, Sliding, W/trim				$ 90.30
51	5304539495		Rail Assembly, Lower Freezer, Rh		Appelez-nous	-
52	525304539494		Rail Assembly, Lower Freezer, Lh		Appelez-nous	-
62	5304526935		Deli Pan, Assembly, W/rollers, Trim				$ 197.79
97	242220134		Tube, Water, 91.4", Natural, Filter Base To, Secondary Valve				$ 21.99
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
25A	5304526925		Crisper Cover, Assembly, Glass, Lower, W/trim-gasket			Immediately	$ 27.91
25B	5304526926		Deli Cover, Assembly, Glass, W/trim-gasket			Immediately	$ 31.52
51A	140287167013		Rail, Upper Freezer, Glass Shelf, Right		Appelez-nous	-
52A	140287168011		Rail, Upper, Freezer, Lh		Appelez-nous	-
NIA	241806601		Connector, Water Tube, 5/16 To 5/16, Straight   (Replaces: 242103001)			Immediately	$ 70.56
NIB	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
