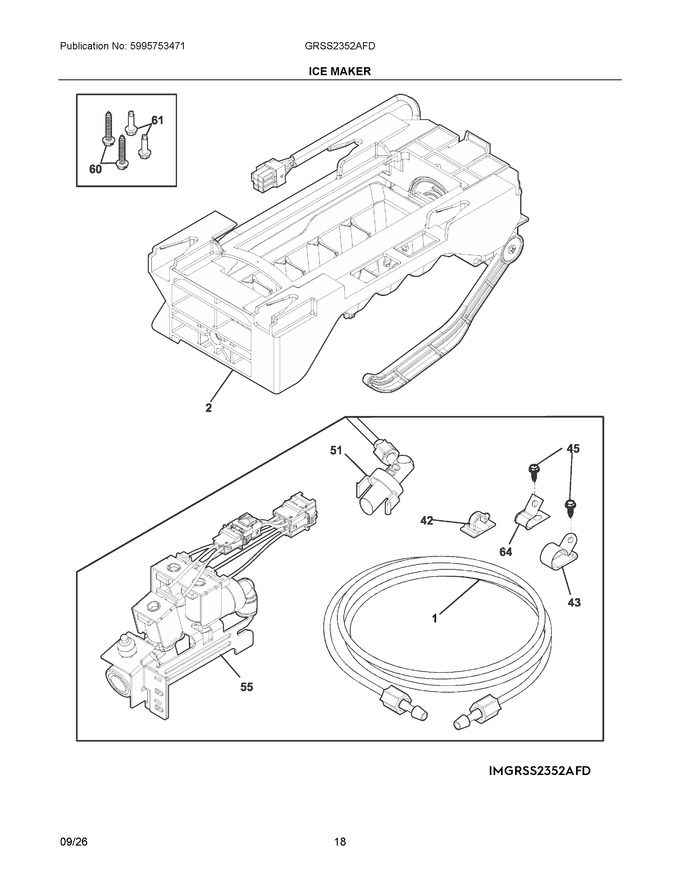

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural, Door, To Dispenser |
|
Immediately | $ 20.56 | ||||
| 2 | 243297613 | Ice Maker, Complete, 115 V, Twist |
|
Immediately | $ 117.66 | ||||
| 42 | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 17.72 | |||||
| 43 | 240396802 | Clamp, Tube/wiring, Nylon, Black/natural |
|
- | |||||
| 45 | 5308000039 | Screw, Hex Washer Head, 8-32ca X 0.500, Serrated Head |
|
- | |||||
| 51 | 140249589056 | Tube Assembly, Water Fill Extn, Valve To Im Inl (Replaces: 241850618) |
|
Immediately | $ 19.19 | ||||
| 55 | 140137975102 | Valve, Water, Triple, Solenoid |
|
Immediately | $ 89.73 | ||||
| 60 | 5304455852 | Screw, Hex Washer Head, 8-15a X 1.000, (2) (Replaces: 5303207328) |
|
$ 12.76 | |||||
| 61 | 241500305 | Screw, Hex Head, #8-18x5/8 (Replaces: 241853202) |
|
$ 3.03 | |||||
| 64 | 5304455846 | Clamp, .31 Id, Steel, Water Tube |
|
$ 10.63 | |||||
| NI | 5304521770 | Harness, Slim Twist, Ice Maker |
|
$ 86.71 | |||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 240396801 | Clamp, Tube/wiring, 1/2", Nylon, Black/natural |
|
$ 19.13 | |||||
| NI | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NIA | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIA | 218976439 | Tube, Water, 32", Yellow, Valve, Door |
|
$ 19.13 | |||||
| NIB | 242220135 | Tube, Water, 67.9", Green |
|
$ 16.67 |
