SELECT A DIAGRAM

01 - Cover


02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner

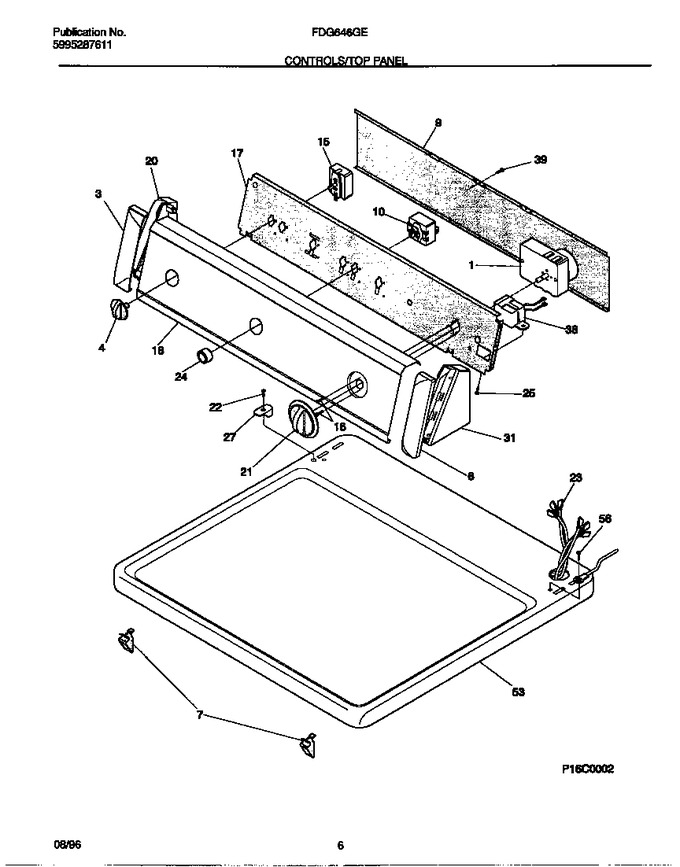

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131063300		Timer-dryer		Appelez-nous	-
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141105		Knob-rotary,white/gray				$ 33.34
6	131122601		Cover-end Cap, White, Rh				$ 47.20
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	131141701		Backsheet-console		Appelez-nous	-
10	131048000		Switch-push/start		Appelez-nous	-
15	131048100		Switch, Temperature		Appelez-nous	-
16	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131297306		Bracket-controls		Appelez-nous	-
18	131603300		Panel-control		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	131141003		Knob-timer-white		Appelez-nous	-
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
23	131484800		Harness-dryer		Appelez-nous	-
24	131111501		Knob-start Switch, White				$ 13.79
25	5303015671		Screw		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	131122701		End Cap, White, Rh				$ 53.29
38	131048300		Buzzer		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131391618		Panel-top, White		Appelez-nous	-
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46
*63641	3201616		Harness - Buzzer		Appelez-nous	-
*63642	5303281103		Tie-harness		Appelez-nous	-
