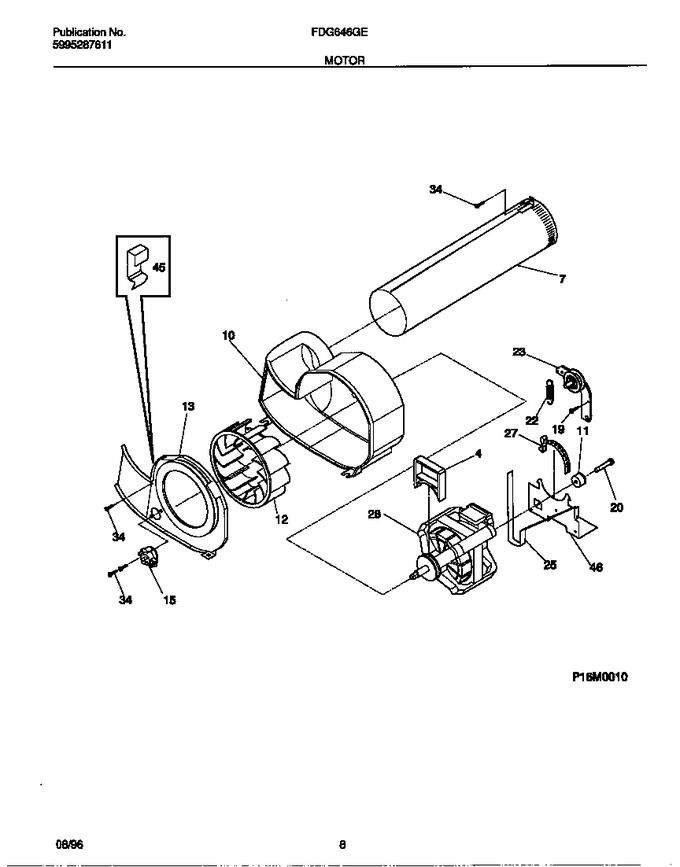

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	131435200		Lock-fan Housing				$ 73.02
7	131451600		Tube-exhaust				$ 54.02
10	131535200		Housing-fan		Appelez-nous	-
11	131553600		Spacer-idler		Appelez-nous	-
12	131967600		Wheel-blower   (Replaces: 131479300)				$ 209.79
13	131967600		Cover-fan   (Replaces: 131367600)				$ 209.79
15	131298400		Thermostat-control				$ 149.63
19	131205300		Screw, 10-16 X .75			Immediately	$ 12.10
20	131017900		Screw-spacer, Hex Head, 1/4-20t X 1.25, Thread Cutting				$ 14.46
22	131421700		Spring-idler				$ 27.09
23	131863007		Arm-idler, W/pulley   (Replaces: 131580400)			Immediately	$ 43.05
25	134503600		Belt-dryer   (Replaces: 5303283471)			Immediately	$ 18.79
27	131419800		Clamp-motor				$ 8.18
28	131560100		Motor-main, W/pulley				$ 267.34
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
45	131484500		Clip-cover		Appelez-nous	-
46	131377500		Bracket-motor		Appelez-nous	-
*63643	131456800		Tube Assy, Exhaust				$ 36.29
