SELECT A DIAGRAM

01 - Cover


02 - Cabinet, Drum, Heat Duct


03 - Door, Front Panel, Lint Filter

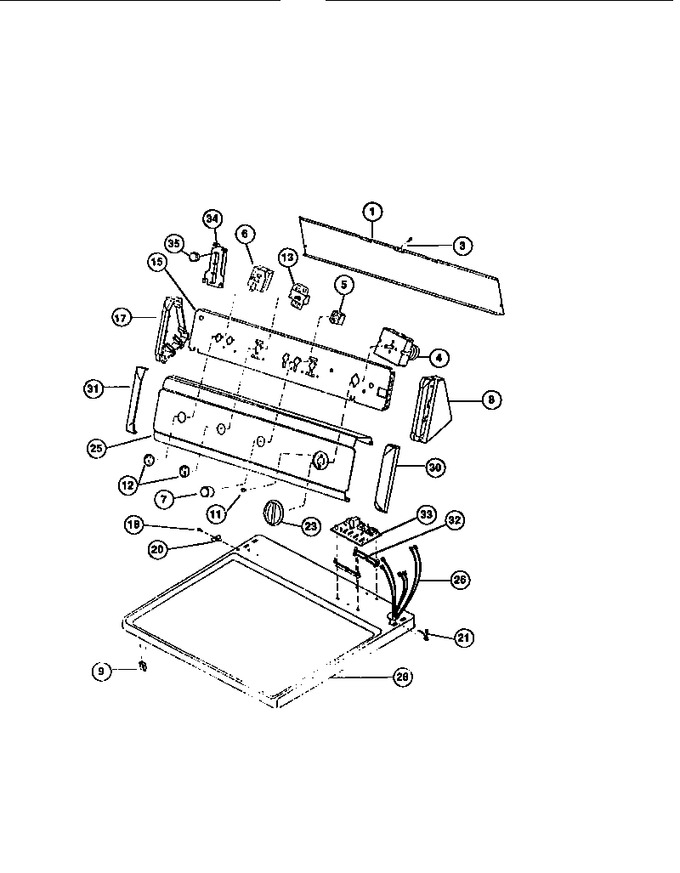

04 - Console, Controls, Top Panel


05 - Motor, Fan Housing, Exhaust Duct


06 - Gas Valve, Burner Assembly, Sensor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131141701		Backsheet		Appelez-nous	-
3	5308006553		Screw		Appelez-nous	-
4	131111300		Timer		Appelez-nous	-
5	131048000		Switch, Start		Appelez-nous	-
6	131048100		Switch, Temperature		Appelez-nous	-
7	131141301		Pushbutton-white		Appelez-nous	-
7	131141302		Pushbutton, Almond		Appelez-nous	-
8	131122701		End Cap, Right Hand, White				$ 53.29
8	131122702		End Cap, Right Hand, Almond		Appelez-nous	-
9	3205821		Spring Catch			Immediately	$ 35.44
11	218359202		Screw   (Replaces: 5303283289)				$ 10.63
12	131141102		Knob-rotary-almond		Appelez-nous	-
12	131141101		Knob-rotary-white		Appelez-nous	-
13	131048300		Buzzer		Appelez-nous	-
15	131297306		Bracket-controls		Appelez-nous	-
17	131122711		End Cap, Left Hand, White				$ 58.38
17	131122712		End Cap, Left Hand, Almond		Appelez-nous	-
18	5303289526		Screw		Appelez-nous	-
20	131197000		Clip				$ 13.62
21	131243800		Screw				$ 10.46
23	131141002		Knob, Timer, Almond		Appelez-nous	-
23	134011703		Knob, Timer, White   (Replaces: 131141001)			Immediately	$ 58.56
25	131281000		Panel-control-white		Appelez-nous	-
25	131281100		Panel-control-almond		Appelez-nous	-
26	131222700		Harness		Appelez-nous	-
28	131130304		Panel, Top, Almond		Appelez-nous	-
28	131130302		Panel-top-white		Appelez-nous	-
30	131122601		Cover, Cap, Right Hand (white)				$ 47.20
30	131122602		Cover Cap, Right Hand, Almond		Appelez-nous	-
31	131122611		Cover, Cap, Left Hand (white)				$ 42.21
31	131122612		Cover Cap, Left Hand, Almond		Appelez-nous	-
32	131089800		Bracket-control Board (2)				$ 50.83
33	131167400		Control Board		Appelez-nous	-
