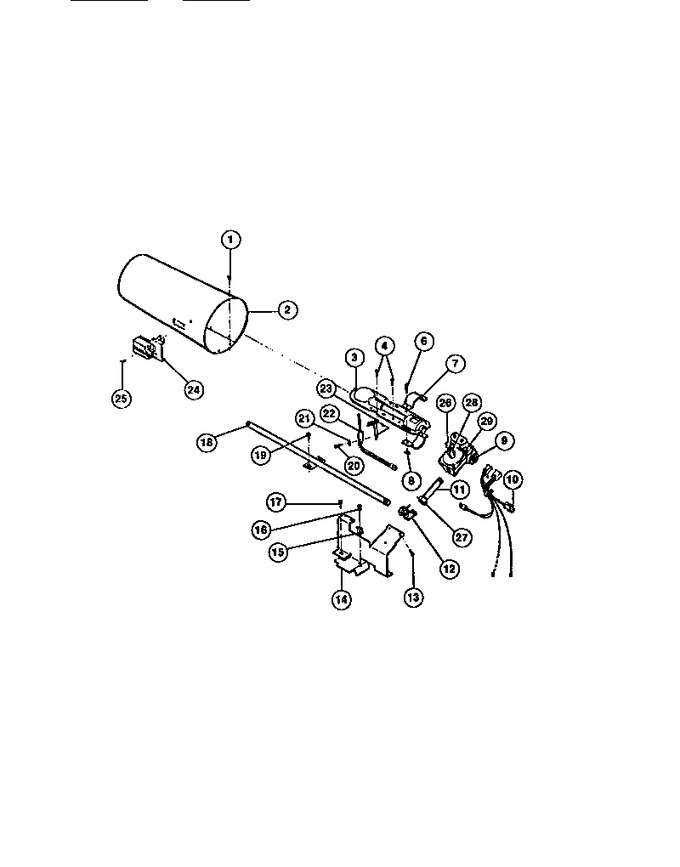

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303010202		Screw(2)				$ 5.15
2	3201240		Burner Tube Assembly		Appelez-nous	-
3	5303281136		Burner Assembly		Appelez-nous	-
4	131243800		Screw(4)				$ 10.46
6	3205701		Screw		Appelez-nous	-
7	5303281138		Air Shutter (2)		Appelez-nous	-
8	5303281148		Nut (2)		Appelez-nous	-
9	131180500		Valve-gas		Appelez-nous	-
10	5303281137		Harness		Appelez-nous	-
11	5303212837		Connection-union Male		Appelez-nous	-
12	5303207407		Angle Valve		Appelez-nous	-
13	131243800		Screw (3)				$ 10.46
14	5303281145		Bracket		Appelez-nous	-
15	3281126		Clip		Appelez-nous	-
16	5303010202		Screw(2)				$ 5.15
17	3281134		Screw		Appelez-nous	-
18	08015271		Pipe		Appelez-nous	-
19	5303010202		Screw(2)				$ 5.15
20	5303281150		Screw		Appelez-nous	-
21	3201209		Washer		Appelez-nous	-
22	5303937186		Ignitor   (Replaces: 5303281151)				$ 80.61
23	5303281149		Bracket-ignitor				$ 30.61
24	131196900		Sensor		Appelez-nous	-
25	5303281035		Screw		Appelez-nous	-
26	131180800		Orifice-natural Gas		Appelez-nous	-
26	5300171852		L.p. Gas Kit (non-illustrated)				$ 103.43
27	08015194		Union - Hex Nut		Appelez-nous	-
28	5300622602		Coil-secondary		Appelez-nous	-
29	5308015680		Coil-booster		Appelez-nous	-
