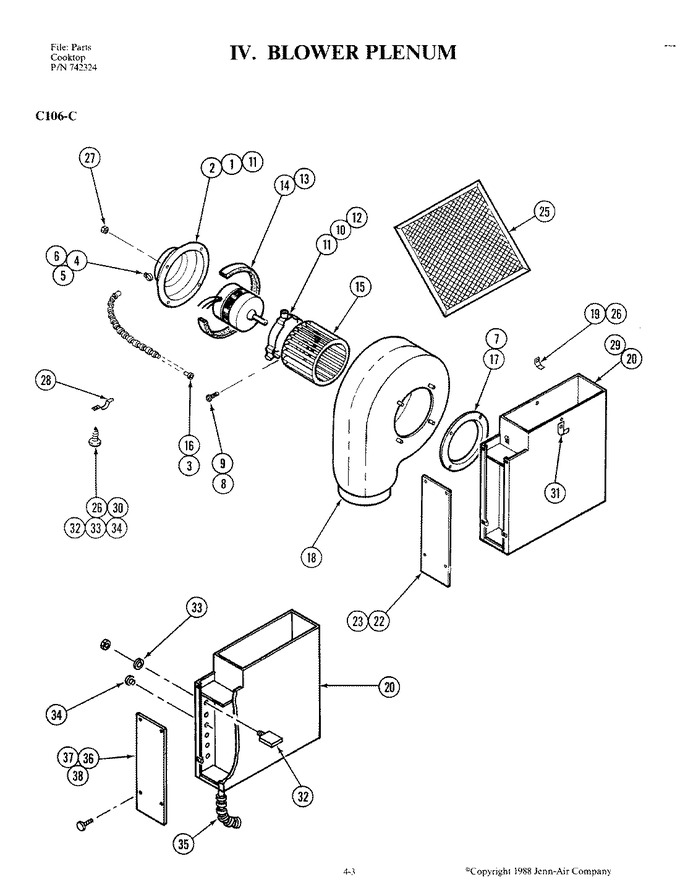

01 - Blower Plenum (c106-c)


02 - Burner Box


03 - Escutcheon


04 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE81-03521A		Motor Cover Assembly   (Replaces: 700027)	1			$ 208.41
2	708863		Cover,motor	1	Appelez-nous	-
3	Y707758		Conduit	1	Appelez-nous	-
4	707766		Connector	1	Appelez-nous	-
5	715780		Clamp, Cable	1	Appelez-nous	-
6	Y707335		Clip	1	Appelez-nous	-
7	702889		Locknut Cap, W/nylon Insert	1	Appelez-nous	-
8	707161		Nut	1	Appelez-nous	-
9	Y707402		Screw	1	Appelez-nous	-
10	WP71003558		Isolator   (Replaces: Y708926)	1			$ 11.47
11	707407		Screw	1			$ 6.42
12	Y707393		Band, Motor	1	Appelez-nous	-
13	707704K		Motor   (Replaces: Y707704)	1		Immediately	$ 352.01
14	Y715957		Foam, Urethane	1	Appelez-nous	-
15	WPY707985		Wheel, Blower   (Replaces: Y707985)	1		Immediately	$ 145.55
16	708185		Bushing	1	Appelez-nous	-
17	Y702295		Ring, Inlet	1	Appelez-nous	-
18	712008		Scroll, Blower Assy.	1	Appelez-nous	-
19	Y707688		Retainer, Filter	1	Appelez-nous	-
20	712216		Plenum	1	Appelez-nous	-
22	Y700464		Plate, Cover	1	Appelez-nous	-
23	WP59002061		Screw   (Replaces: Y707172)	1			$ 6.98
25	WP707929		Filter, Grease   (Replaces: 707929)	1		Immediately	$ 44.51
26	WP71001171		Screw   (Replaces: Y701379)	1			$ 6.26
27	WPY707702		Locknut   (Replaces: Y707702)	1		Immediately	$ 6.26
28	712310		Tinnerman	1	Appelez-nous	-
29	WP71001171		Screw   (Replaces: Y701379)	1			$ 6.26
30	WP71001171		Screw   (Replaces: Y707745)	1			$ 6.26
31	712254		Clamp, Cable	1	Appelez-nous	-
32	Y715443		Breaker, Circuit	1	Appelez-nous	-
33	715615		Washer, Lock	1	Appelez-nous	-
34	700885		Button, Plug	1	Appelez-nous	-
35	712449		Wire Cable	1	Appelez-nous	-
36	708153		Lug, Ground	1	Appelez-nous	-
37	Y700862		Washer	1	Appelez-nous	-
38	WP71001171		Screw   (Replaces: Y707745)	1			$ 6.26
NI	Y707831		Clip	1	Appelez-nous	-
NI	701958		Clip, Tinnerman	1	Appelez-nous	-
