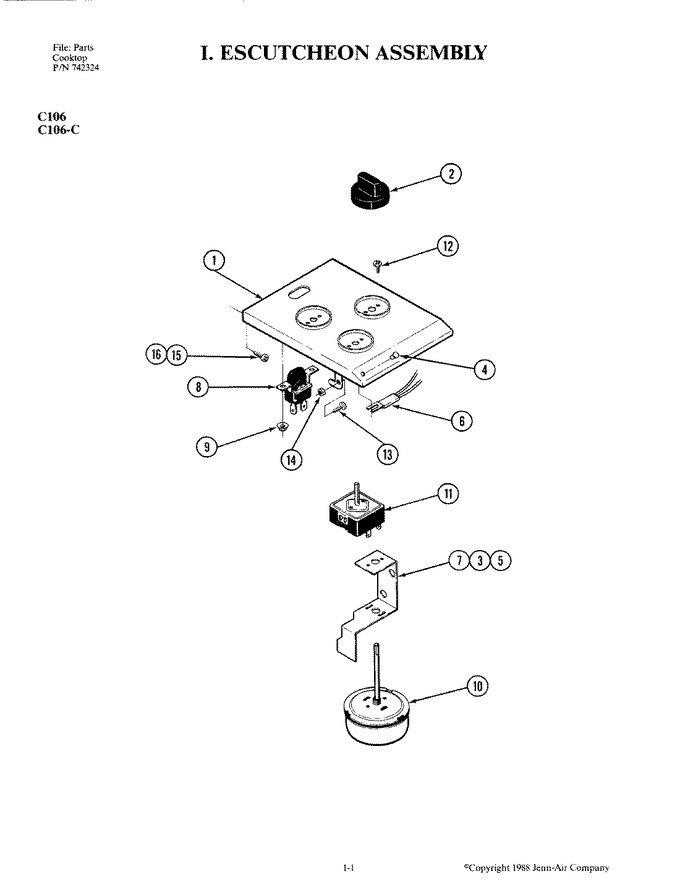

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704211 | Escutcheon | 1 |
|
- | ||||
| 2 | WPY703899 | Knob, Switch (blk) (Replaces: Y703899) | 1 |
|
Immediately | $ 21.09 | |||
| 3 | 704208 | Knob, Clock | 1 |
|
- | ||||
| 4 | 703927 | Lens | 1 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 6 | 704209 | Light, Pilot | 1 |
|
- | ||||
| 7 | 704333 | Bracket, Timer (rt) | 1 |
|
- | ||||
| 8 | Y704573 | Switch, Fan (blk) | 1 |
|
- | ||||
| 9 | 7103P166-60 | Palnut (Replaces: 715500) | 1 |
|
$ 15.91 | ||||
| 10 | 707732 | Timer | 1 |
|
- | ||||
| 11 | W11120791 | Switch, Infinite (Replaces: 703650) | 1 |
|
Immediately | $ 98.55 | |||
| 11 | 712448 | Kit, Wire Escutcheon | 1 |
|
- | ||||
| 12 | Y703935 | Screw | 1 |
|
- | ||||
| 13 | WP488234 | Screw (Replaces: 708861) | 1 |
|
$ 6.07 | ||||
| 14 | WP488130 | Nut (Replaces: Y701396) | 1 |
|
$ 6.27 | ||||
| 15 | WP7101P126-60 | Screw (Replaces: Y700627) | 1 |
|
Immediately | $ 6.85 | |||
| 16 | Y700834 | Clip | 1 |
|
- | ||||
| NI | 16000448 | Manual, Service-no Refund | 1 |
|
- |
