Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 154357602 Panel-control,white Special Order $ 170.31

2 154418601 Insert,control Panel ,white Special Order $ 66.36

11 5304428149 Lens,light Appelez-nous -
12 154236502 Pushbutton,white Special Order $ 52.03

13 154239504 Knob-timer, White Special Order $ 67.04

F3 154437301 Timer Special Order $ 360.47

F8 154220401 Switch-selector,5 Button Appelez-nous -
NI 154399019 Label,energy Guide Appelez-nous -
NI 154242201 Shield-switch Appelez-nous -
NI 154779601 Screw,mtg.   (Replaces: 5303318719) Special Order $ 1.42

NI 154438001 Wiring Harness Appelez-nous -
NI 154416601 Shield,wire ,white Appelez-nous -
NI 154131203 Shield-timer Appelez-nous -
NI 154095701 Screw,thread Rolling ,(2) ,timer Special Order $ 10.34


    View Diagram in Separate Window     Print Icon   Print Part List

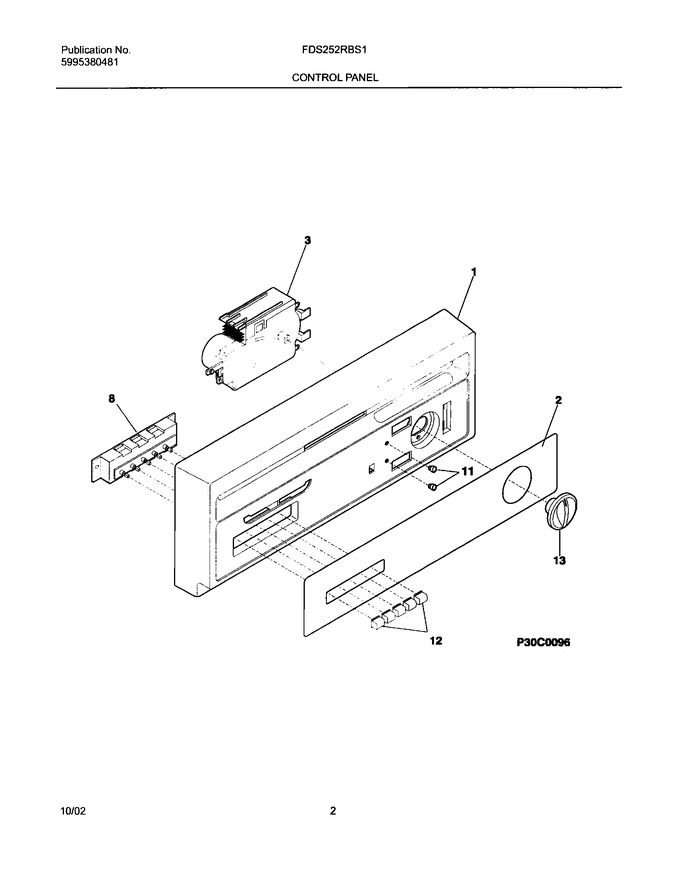

Diagram for FDS252RBS1
