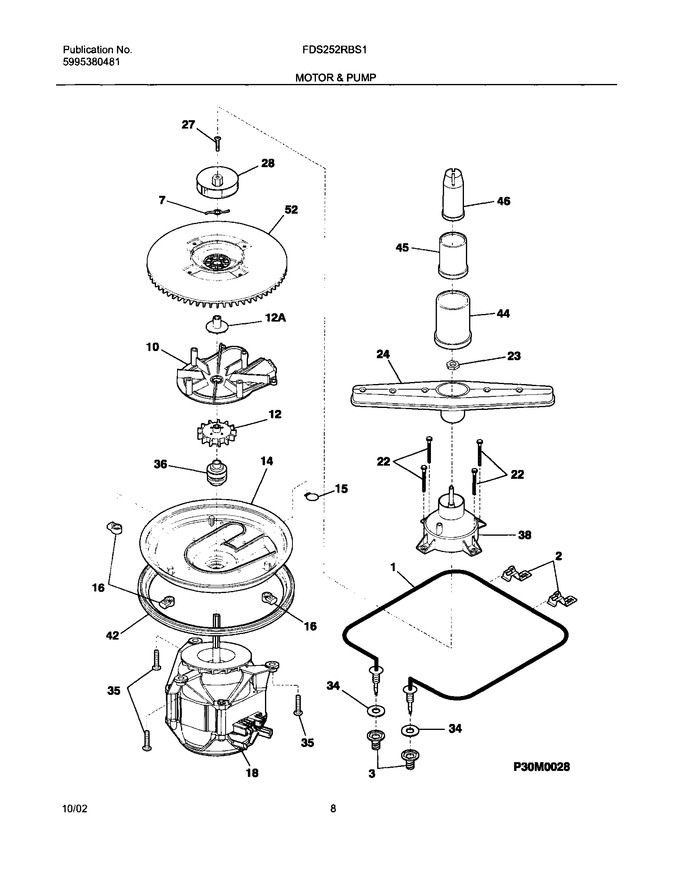

09 - Motor & Pump


11 - Frame


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	154359701		Bracket,heater ,(2)		Appelez-nous	-
3	154106202		Nut,heater ,(2)   (Replaces: 154106201)			Immediately	$ 18.32
7	154365101		Macerator				$ 36.28
10	154365302		Cover,volute				$ 19.76
12	154365401		Impeller,lower Drain				$ 36.01
14	154364802		Housing,pump				$ 8.51
16	154246502		Retainer, Sump			Immediately	$ 40.40
22	154200201		Screw-pump Housing		Appelez-nous	-
23	154234301		Nut-spray Arm				$ 51.32
24	154219201		Spray Arm-lower				$ 196.77
27	154377501		Screw-upper Impeller				$ 9.19
28	154370601		Impeller-upper				$ 6.04
34	154064901		Washer-insulating				$ 8.14
35	154200901		Screw-motor Mtg				$ 14.39
36	154387601		Sleeve & Seal Assy.				$ 13.13
38	154367402		Diffuser			Immediately	$ 79.38
42	154365601		Gasket-pump				$ 52.76
44	154122502		Base-tower				$ 38.90
45	154122601		Middle-tower				$ 55.07
46	154122701		Tip-tower		Appelez-nous	-
52	154365201		Cover,pump Housing				$ 4.46
12A	154365501		Slinger-pump				$ 33.23
F1	154220901		Heater				$ 214.31
F15	154367701		Check Valve				$ 31.92
F18	154384301		Motor		Appelez-nous	-
NI	154232601		Shield,heat ,spray Arm		Appelez-nous	-
NI	154289801		Shield-heater Terminal				$ 7.33
NI	154611101		Clamp-hose,(2)   (Replaces: 154106801)				$ 12.05
NI	154200601		Screw,no.10-16 X 3/8				$ 7.98
