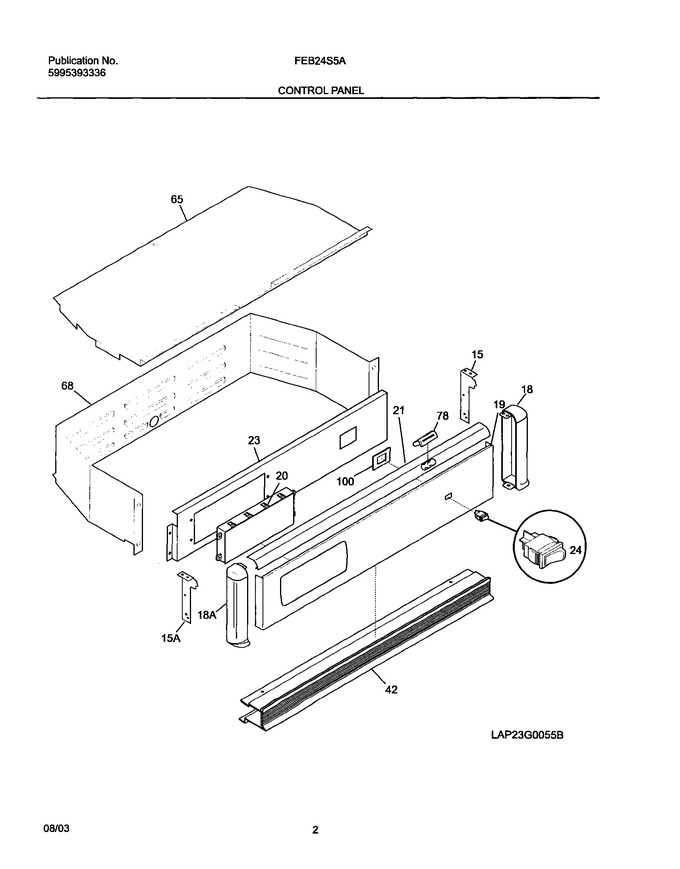

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303302286		Support-backguard, Rh		Appelez-nous	-
18	318190300		End Cap,bisque ,rh		Appelez-nous	-
19	318179804		Panel,control ,bisque		Appelez-nous	-
21	318028110		Trim,canopy ,bisque		Appelez-nous	-
23	318015035		Bracket,clock/timer Mtg		Appelez-nous	-
42	318027514		Trim,vent ,bisque		Appelez-nous	-
65	318038804		Cover-control Housing		Appelez-nous	-
68	5303302397		Housing,control		Appelez-nous	-
78	318037110		Cover,oven Vent ,bisque		Appelez-nous	-
100	318112200		Plate,mounting ,rocker Switch		Appelez-nous	-
15A	5303302287		Support-backguard, Lh		Appelez-nous	-
18A	318190301		End Cap,bisque ,lh		Appelez-nous	-
F20	318185448		Clock/timer,electronic ,bisque ,es300		Appelez-nous	-
F24	318037520		Switch,rocker ,bisque ,oven Light				$ 61.64
NI	5303311528		Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black		Appelez-nous	-
NI	5303288566		Screw,8 X 1/4   (Replaces: 5303323130)				$ 2.12
NI	318189301		Deflector,timer		Appelez-nous	-
NI	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
NI	316220804		Overlay,clock ,bisque   (Replaces: 316220806)			Immediately	$ 42.53
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
