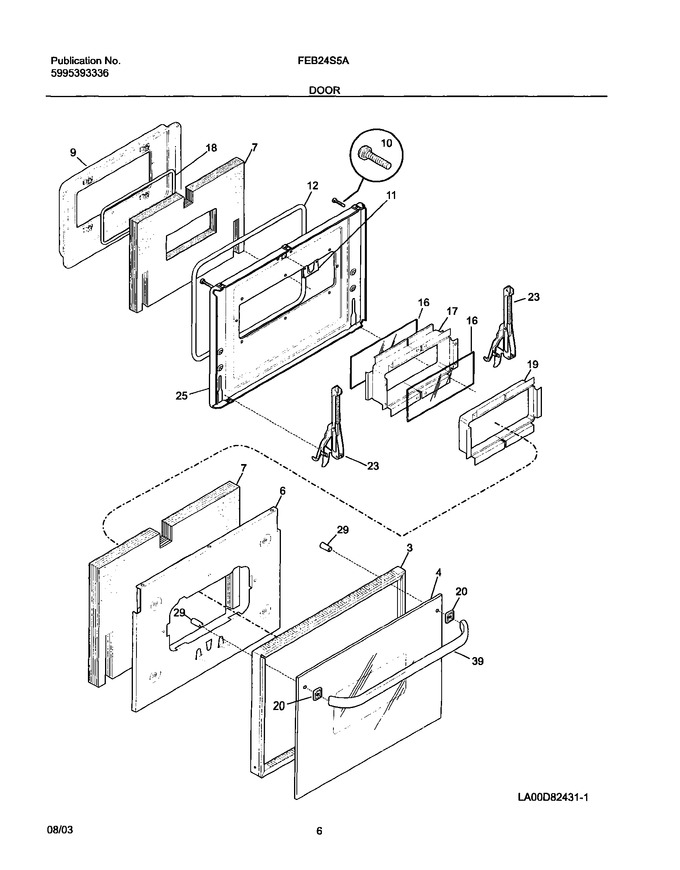

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026104		Trim,oven Door ,bisque		Appelez-nous	-
4	318051517		Glass,oven Door ,bisque ,outer		Appelez-nous	-
6	318073600		Shield-air Wash		Appelez-nous	-
7	318133740		Insulation,oven Door		Appelez-nous	-
9	318038600		Liner,oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
11	318065102		Latch-door				$ 58.81
12	318178801		Seal-oven Door		Appelez-nous	-
16	5303324250		Glass,door ,13 1/2 X 6 1/2				$ 184.54
17	318139100		Spacer-glass, Upper Oven		Appelez-nous	-
18	3016263		Seal-rope, Upper Oven				$ 66.15
19	318139201		Collar-glass Mtg		Appelez-nous	-
20	318014303		Spacer,handle ,bisque ,(2)		Appelez-nous	-
23	5303310506		Hinge-oven Door,assembly		Appelez-nous	-
25	318048309		Liner,oven Door		Appelez-nous	-
29	318014400		Spacer,door		Appelez-nous	-
39	316091125		Handle,door ,bisque		Appelez-nous	-
NI	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
NI	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	3202113		Plug,button		Appelez-nous	-
NI	5303316982		Foam Seal,(3)		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
