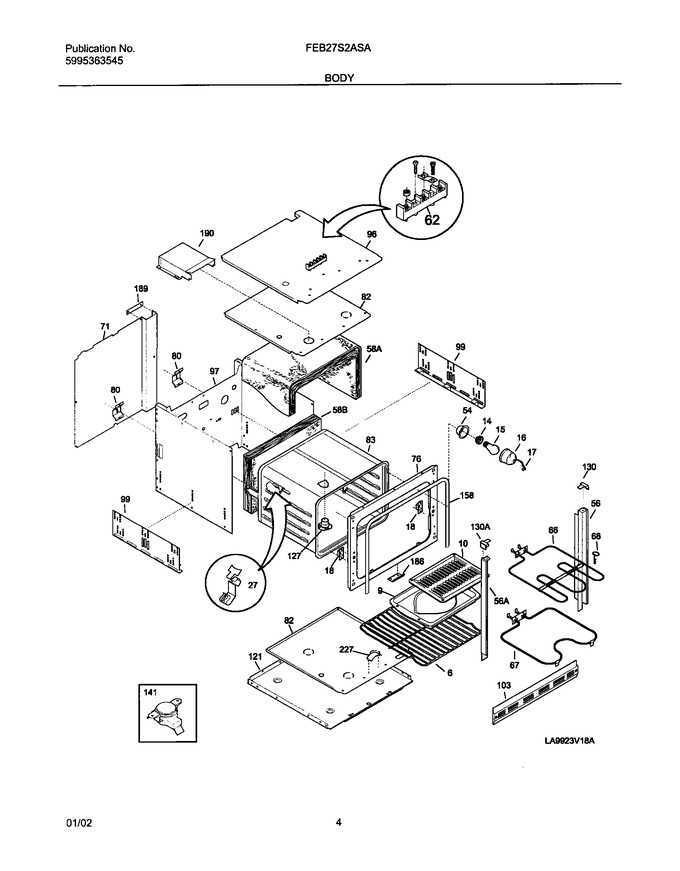

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 5303299719 | Rack-oven |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 16 | 5304524341 | Cover,oven Light ,glass (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 18 | 318090310 | Latch-door (Replaces: 318090300) |
|
Immediately | $ 44.61 | ||||
| 27 | 5303284616 | Clip,thermo Bulb Mtg |
|
$ 9.86 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 318034104 | Trim,bodyside ,white ,rh |
|
- | |||||
| 66 | 5303322963 | Element-broil |
|
- | |||||
| 68 | 5304403015 | Support,element Hanger |
|
$ 35.04 | |||||
| 71 | 318071110 | Shield-rear Wall |
|
- | |||||
| 76 | 318056107 | Front-oven |
|
- | |||||
| 80 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 82 | 5303304699 | Shield-insulation |
|
- | |||||
| 83 | 318089511 | Liner,oven |
|
- | |||||
| 96 | 5303300093 | Wrapper,oven Top |
|
- | |||||
| 97 | 318066703 | Wrapper,back And Sides (Replaces: 318066702) |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| 103 | 5303316903 | Trim,base ,white ,lower |
|
$ 133.46 | |||||
| 121 | 318145002 | Wrapper,base |
|
- | |||||
| 127 | 318072800 | Adaptor Assy |
|
- | |||||
| 130 | 5303299671 | End-cap,white,rh |
|
- | |||||
| 158 | 318053311 | Seal,oven Door |
|
$ 30.31 | |||||
| 186 | 318039502 | Bracket,trim ,white |
|
- | |||||
| 189 | 318042500 | Plate,retainer |
|
- | |||||
| 190 | 5303299666 | Tube-oven Vent |
|
- | |||||
| 227 | 5303323955 | Clip-retainer |
|
- | |||||
| 56A | 318034105 | Trim,bodyside ,white ,lh |
|
- | |||||
| 58A | 318133710 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318133704 | Insulation,oven Back |
|
- | |||||
| F130 | 5303299672 | End-cap,white,lh |
|
- | |||||
| F14 | 316116400 | Receptacle, Oven Light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| F141 | 318003600 | Thermostat-safety |
|
$ 293.37 | |||||
| F15 | 3201908 | Light,oven |
|
- | |||||
| F62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| F67 | 318255100 | Element-bake (Replaces: 5303299718) |
|
Immediately | $ 204.07 | ||||
| NI | 318078522 | Box & Wires Assy |
|
- | |||||
| NI | 5303320489 | Plug,hinge Hole |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303935083 | Screw 10-16x1-1/4 |
|
$ 9.19 |
