SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Body

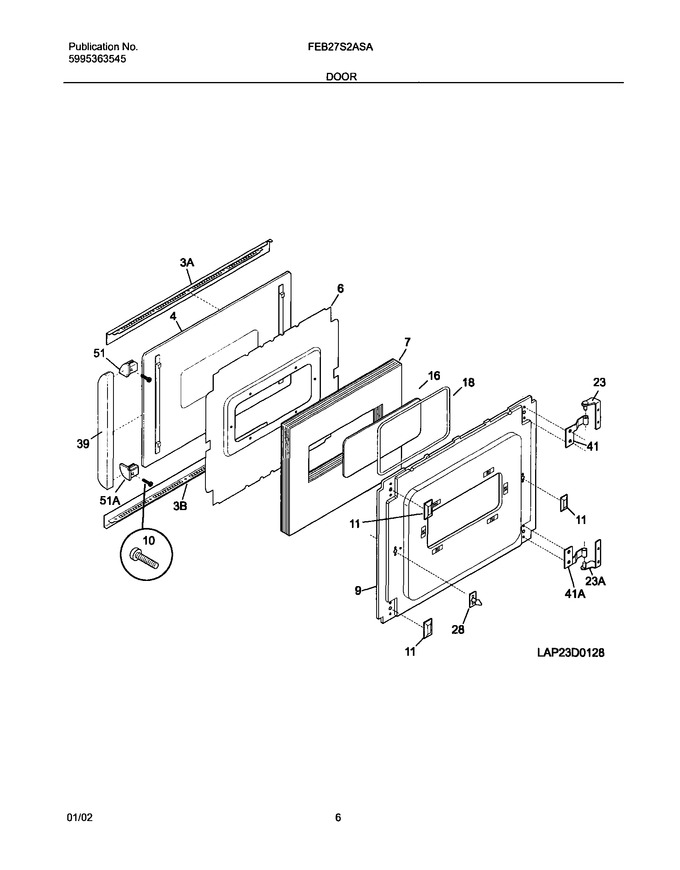

07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	318210402		Glass,oven Door ,white ,outer		Appelez-nous	-
6	5303316954		Shield-insulation		Appelez-nous	-
7	318133705		Insulation,oven Door		Appelez-nous	-
9	5303320491		Liner-oven Door		Appelez-nous	-
10	5304414648		Screw,10-24 X 1/4   (Replaces: 5303308458)				$ 14.18
11	5303320493		Cover-hinge Cutout				$ 6.93
16	5303324250		Glass,door ,13 1/2 X 6 1/2				$ 184.54
18	318053204		Seal,rope ,lower Oven				$ 63.05
23	5303299712		Hinge-oven Door, Upper, Assy		Appelez-nous	-
28	318090220		Strike-door				$ 57.04
39	5303299726		Handle-door, White, Oven		Appelez-nous	-
41	5303299746		Hinge-oven Door,upper		Appelez-nous	-
51	5303299738		Bracket, Handle Mtg, White, Upper				$ 98.86
23A	5303299711		Hinge-oven Door, Lower, Assy		Appelez-nous	-
3A	5303299730		Trim-oven Door, White, Upper		Appelez-nous	-
3B	5303299731		Trim,oven Door ,white ,upper		Appelez-nous	-
41A	5303299744		Hinge-oven Door,lower		Appelez-nous	-
51A	5303299739		Bracket, Handle Mtg, White, Lower				$ 172.57
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
