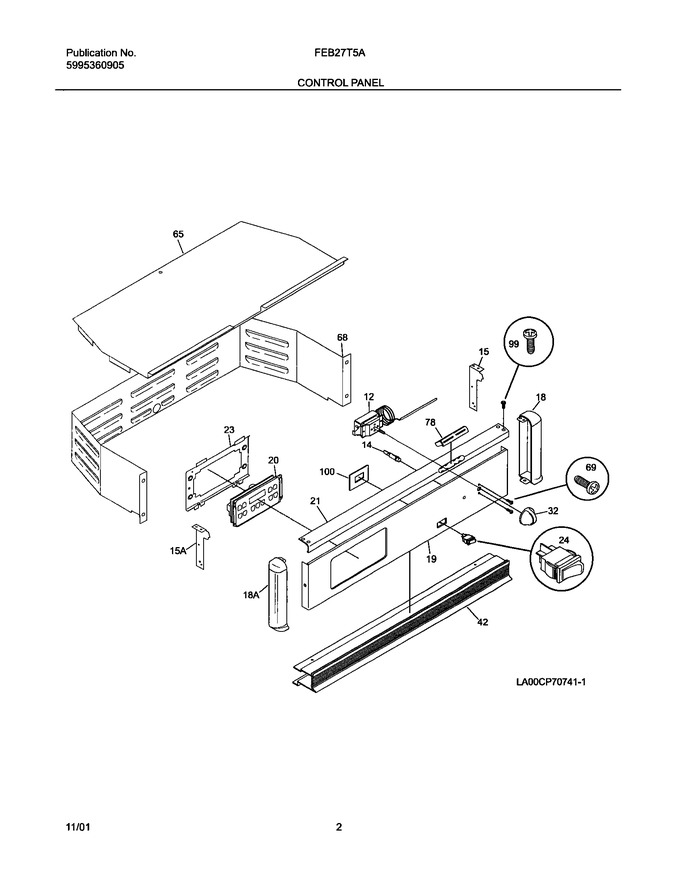

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303320497		Light/lamp, Indicator, Red, 250 V		Appelez-nous	-
15	5303302286		Support-backguard, Rh		Appelez-nous	-
18	5303311208		End Cap, White, Rh		Appelez-nous	-
19	318179809		Panel,control ,white		Appelez-nous	-
21	5303302283		Trim,canopy ,white ,top		Appelez-nous	-
23	318015725		Bracket,clock Mtg		Appelez-nous	-
32	318196620		Knob,thermostat ,white		Appelez-nous	-
42	5303318709		Trim-vent, White		Appelez-nous	-
65	318038803		Cover-control Housing		Appelez-nous	-
68	5303302285		Housing-control		Appelez-nous	-
69	5303288565		Screw,switch Mtg. ,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
78	318036901		Cover, Oven Vent, White		Appelez-nous	-
99	5303316956		Screw,6-32 X 3/8 ,white ,(2)		Appelez-nous	-
100	318112200		Plate,mounting ,rocker Switch		Appelez-nous	-
15A	5303302287		Support-backguard, Lh		Appelez-nous	-
18A	5303311209		End Cap, White, Lh		Appelez-nous	-
F12	318058200		Thermostat-oven, Non S/c, Lower		Appelez-nous	-
F20	318012953		Clock/timer,electronic ,white		Appelez-nous	-
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
NI	3201861		Screw,6 X 0.375				$ 0.76
NI	5303288566		Screw,6-20 X 0.250   (Replaces: 5303320848)				$ 2.12
