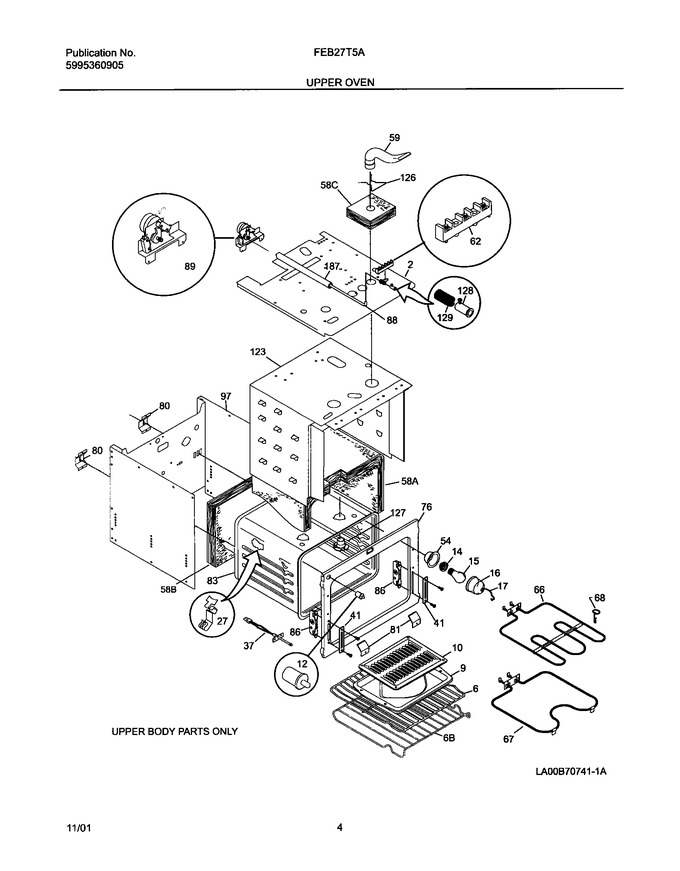

05 - Upper Oven
07 - Lower Oven
09 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303300093 | Wrapper,oven Top |
|
- | |||||
| 6 | 318345216 | Rack-oven (Replaces: 5303296873) |
|
$ 103.90 | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch,oven Light ,door Frame (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 16 | 5304524341 | Cover,oven Light ,glass (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 27 | 5303284616 | Clip,thermo Bulb Mtg |
|
$ 9.86 | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 59 | 5303300951 | Tube-oven Vent |
|
- | |||||
| 66 | 5303322963 | Element-broil |
|
- | |||||
| 68 | 5304403015 | Support,element Hanger |
|
$ 35.04 | |||||
| 76 | 318124212 | Front-oven |
|
- | |||||
| 80 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 81 | 5303323710 | Bracket-oven |
|
- | |||||
| 83 | 318089520 | Liner,oven |
|
- | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 88 | 5303311222 | Rod-latch |
|
$ 129.19 | |||||
| 97 | 318066500 | Wrapper, Back & Sides |
|
- | |||||
| 123 | 318071442 | Shield-insulation,top & Sides |
|
- | |||||
| 126 | 3016303 | Clip,insulator |
|
- | |||||
| 127 | 318317100 | Adapter,vent Tube ,with Converter (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 187 | 318013501 | Tube,latch Rod |
|
- | |||||
| 58A | 318133738 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318133737 | Insulation,oven Back |
|
- | |||||
| 58C | 5303317714 | Insulation, Oven Vent |
|
- | |||||
| 6B | 5303299271 | Shelf-oven |
|
- | |||||
| F14 | 316116400 | Receptacle, Oven Light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| F15 | 3201908 | Light,oven |
|
- | |||||
| F37 | 316217002 | Sensor,oven Temp Probe (Replaces: 316111203) |
|
Immediately | $ 61.23 | ||||
| F62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| F67 | 5303323865 | Element-bake |
|
- | |||||
| F89 | 318095932 | Motor,latch Assy ,w/brkt & Switch |
|
- | |||||
| NI | 318120710 | Switch,cooktop Shutoff |
|
- | |||||
| NI | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| NI | 5303308449 | Fastener |
|
- | |||||
| NI | 5303323136 | Screw-ground |
|
- |
