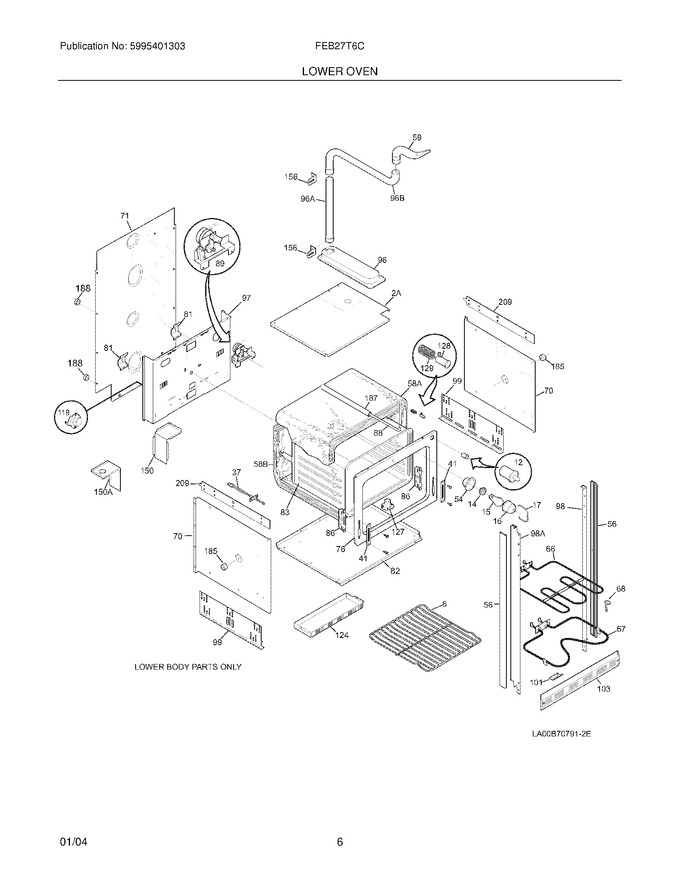

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5303299719		Rack-oven		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
56	5303300956		Trim,bodyside ,black ,(2)		Appelez-nous	-
59	318072510		Tube-oven Vent				$ 157.80
66	5303322963		Element-broil		Appelez-nous	-
68	5304403015		Support,element Hanger				$ 35.04
70	5303300142		Shield-insulation		Appelez-nous	-
71	318071212		Shield,wire		Appelez-nous	-
76	318056104		Front-oven		Appelez-nous	-
81	318192400		Spring,oven				$ 312.53
82	318071802		Shield,oven Bottom		Appelez-nous	-
83	318089517		Liner,oven		Appelez-nous	-
86	5303310524		Receptacle,hinge		Appelez-nous	-
88	5303311222		Rod-latch				$ 129.19
96	5303317197		Duct,oven Vent ,assy		Appelez-nous	-
97	318066703		Wrapper,back And Sides		Appelez-nous	-
98	318029352		Trim,side ,inner,rh		Appelez-nous	-
99	318055420		Support-adjustable				$ 44.73
101	318039511		Bracket-trim,black		Appelez-nous	-
103	318028700		Trim-base, Black				$ 156.12
124	318076904		Box,vent		Appelez-nous	-
127	318072801		Adaptor Assy		Appelez-nous	-
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
150	318072205		Bracket,support ,lh				$ 72.35
156	5303317198		Bracket-oven Vent		Appelez-nous	-
185	318531800		Spacer-oven Shield   (Replaces: 318014700)				$ 12.76
187	318013501		Tube,latch Rod		Appelez-nous	-
188	318531702		Spacer   (Replaces: 318014110)				$ 9.93
209	318086210		Plate,retainer		Appelez-nous	-
2A	318071502		Shield,oven Top		Appelez-nous	-
58A	318133758		Insulation,oven Wrapper		Appelez-nous	-
58B	318133749		Insulation,oven Back		Appelez-nous	-
96A	3016325		Duct,oven Vent ,center		Appelez-nous	-
96B	3016327		Duct-vent Pipe		Appelez-nous	-
98A	318029353		Trim,side ,inner,lh		Appelez-nous	-
F119	318004900		Switch,thermal				$ 60.25
F12	318394803		Switch,light   (Replaces: 318089913)			Immediately	$ 44.23
F128	5303311528		Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black		Appelez-nous	-
F150	318072204		Bracket,support ,rh		Appelez-nous	-
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F67	318255100		Element-bake   (Replaces: 5303299718)			Immediately	$ 204.07
F89	318095956		Motor,latch Assy ,w/brkt & Switch   (Replaces: 318095936)			Immediately	$ 143.83
NI	318120711		Switch				$ 87.68
NI	318078530		Box & Wires Assy		Appelez-nous	-
NI	5303284616		Clip,thermo Bulb Mtg				$ 9.86
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
NI	5303320422		Screw,6-20 X 5/16 ,black ,(6)				$ 12.71
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303308456		Screw,8-18 X 0.531 ,black ,door Frame				$ 10.06
