SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Upper Oven


07 - Lower Oven

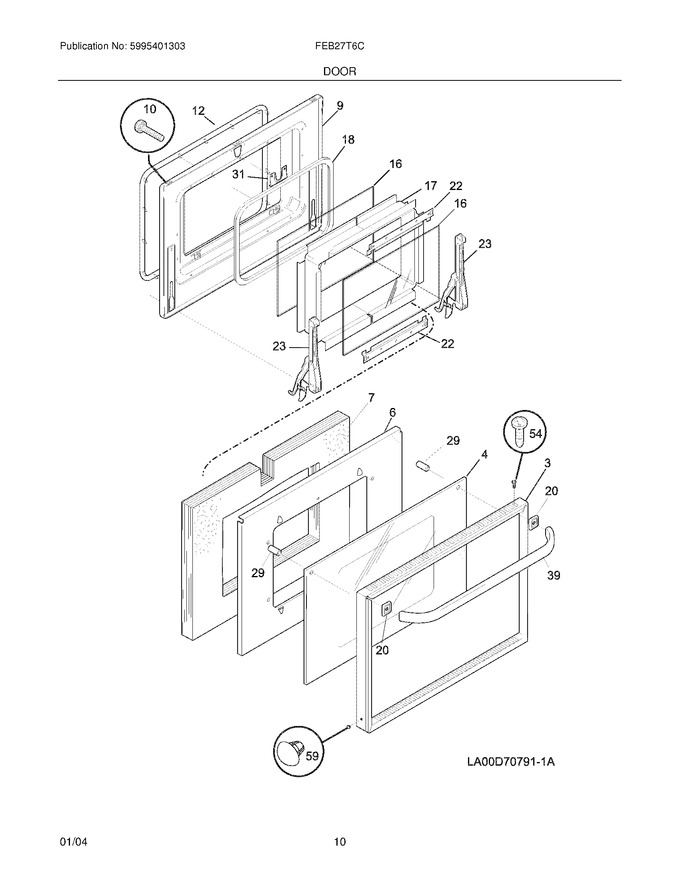

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026600		Trim,oven Door ,black		Appelez-nous	-
4	318051616		Glass,oven Door ,black ,outer				$ 156.45
6	318073502		Shield,air Wash				$ 23.68
7	318133751		Insulation,oven Door		Appelez-nous	-
9	318048503		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
12	318053100		Seal-oven Door				$ 317.89
16	318042300		Glass-oven Door, Heat Barrier, (2)				$ 298.46
17	318042000		Spacer-glass		Appelez-nous	-
18	318053000		Seal-rope		Appelez-nous	-
20	318014300		Spacer-handle, Black, (2)				$ 36.44
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	5303310506		Hinge-oven Door,assembly		Appelez-nous	-
29	318014400		Spacer,door		Appelez-nous	-
31	318065102		Latch-door				$ 58.81
39	316091106		Handle-door,black ,oven		Appelez-nous	-
54	5303308456		Screw,8-18 X 0.531 ,black ,door Frame				$ 10.06
59	3202113		Plug,button		Appelez-nous	-
NI	5303300414		Spacer, Cork & Rubber				$ 13.18
NI	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
